Microsoft SQL Server

Chapter 5 - DDL (Data Definition Language)

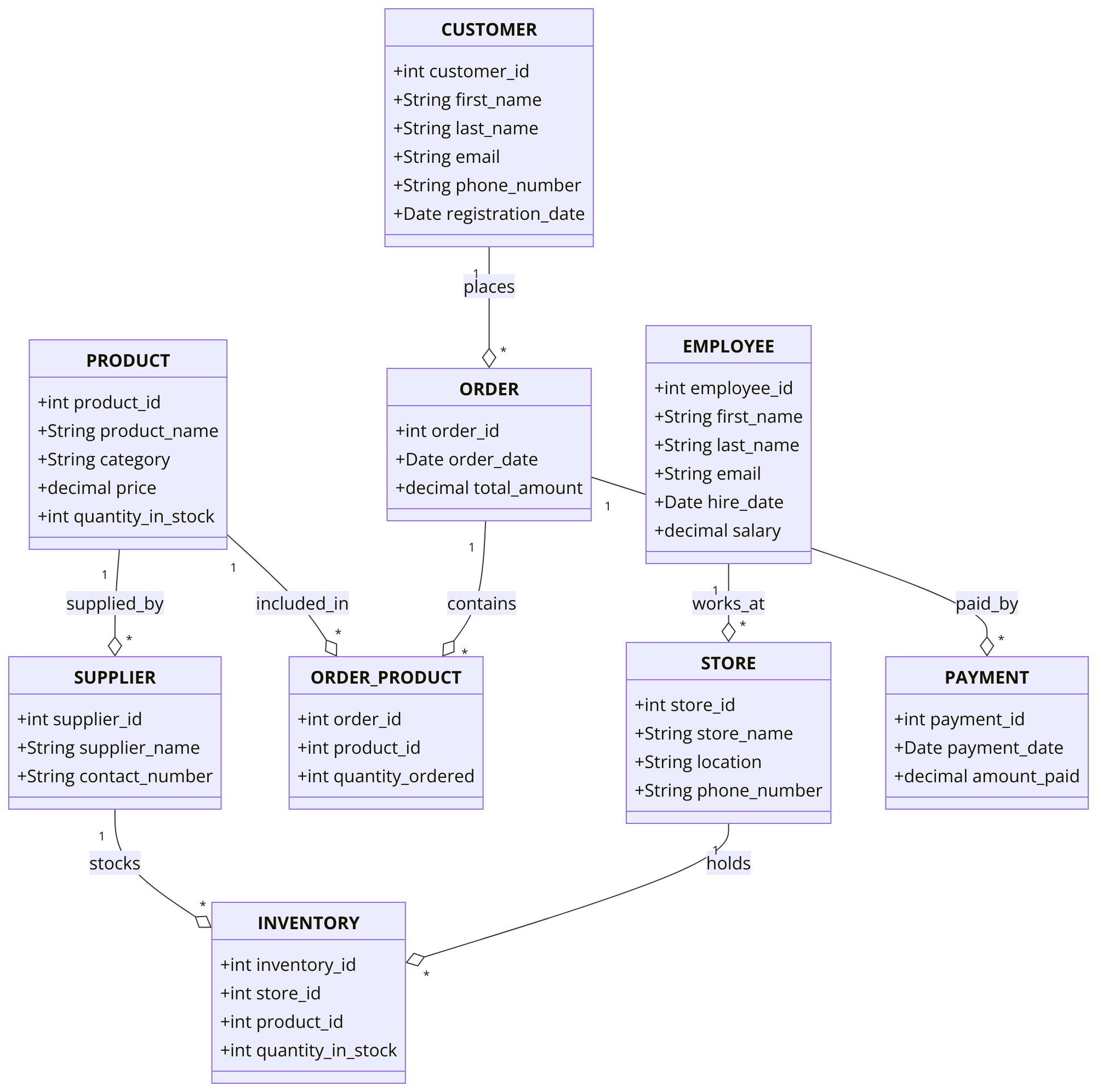

DDL ASSIGNMENT1 - Store Management System

Objective:

You are required to address a set of Data Definition Language (DDL) tasks for a Store Management System. Each query focuses on distinct DDL tasks, including the creation of tables, application of constraints, and establishment of relationships between tables.

Requirements:

You will need to complete at least 20 different DDL tasks, covering table creation, primary keys, foreign keys, constraints, and indexes. Each task represents a key part of designing the structure of the Store Management System.

Question 1: Create the CITY Table with Constraints

Write a DDL SQL statement to create an CITY table:

city_id as a primary key with auto-increment functionality.
country_name as a string with a maximum length of 50 characters, and not null.
city_name as a string with a maximum length of 50 characters, and not null.
created_at as a datetime field, default it to system timestamp, not null.
Add a UNIQUE constraint on country_name + city_name to ensure that there are no duplicates.

Question 2: Create the STORE Table

Create a STORE table:

store_id as a primary key with auto-increment functionality.
store_name as a string with a maximum length of 255 characters, not null.
location as a string with a maximum length of 255 characters.
phone_number as a string, not null.
created_at as a datetime field, default it to system timestamp, not null.

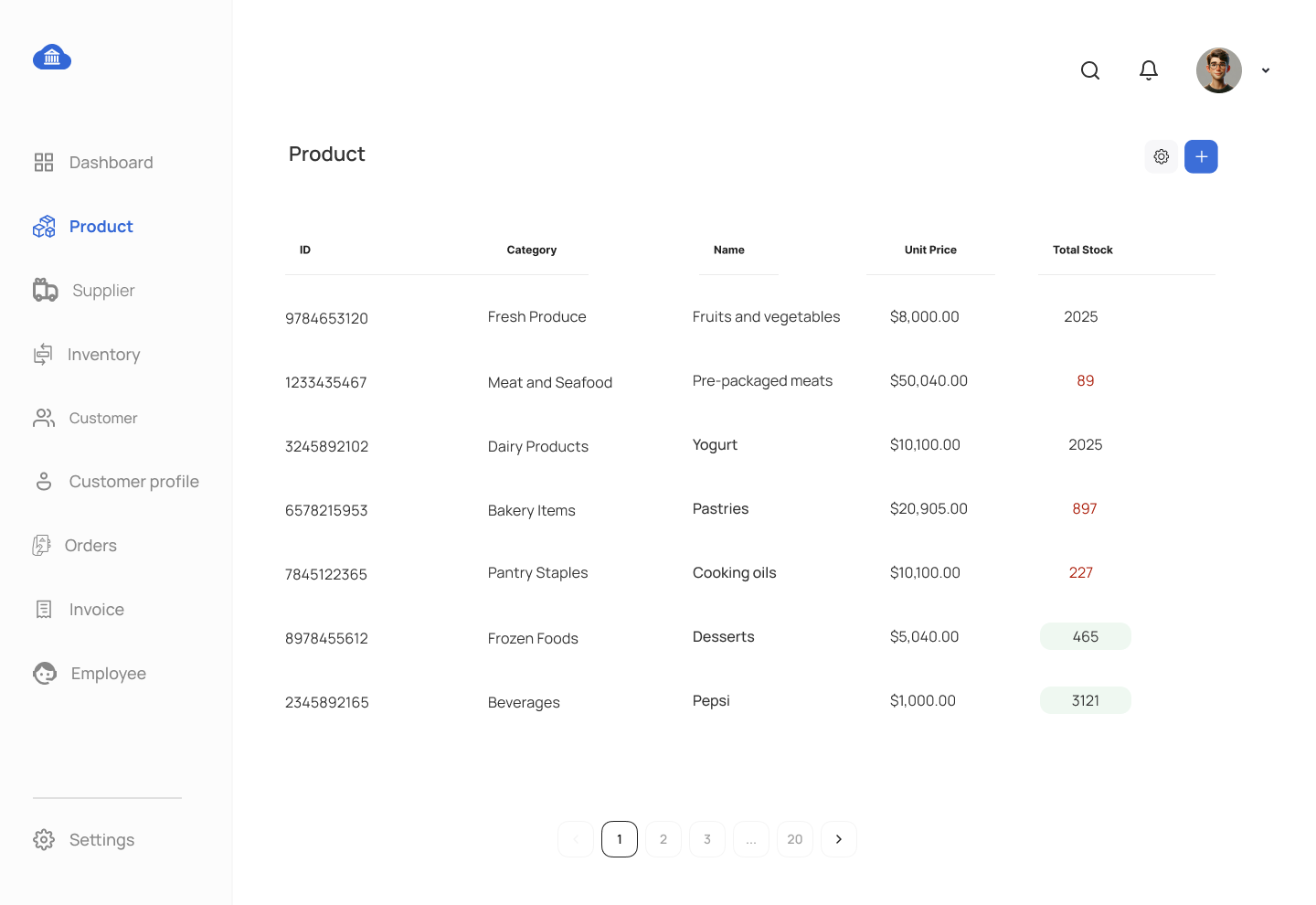

Question 3: Create the PRODUCT Table

Write a DDL SQL statement to create a PRODUCT table with the following requirements:

product_id as a primary key with auto-increment functionality.
product_name as a string of maximum length 255 characters, not null.
category as a string of maximum length 100 characters.
price as a decimal with precision (10, 2), not null.
quantity_in_stock as an integer, not null.
created_at as a datetime field, default it to system timestamp, not null.
Add a CHECK constraint to ensure category is drinks or snacks or fruits.

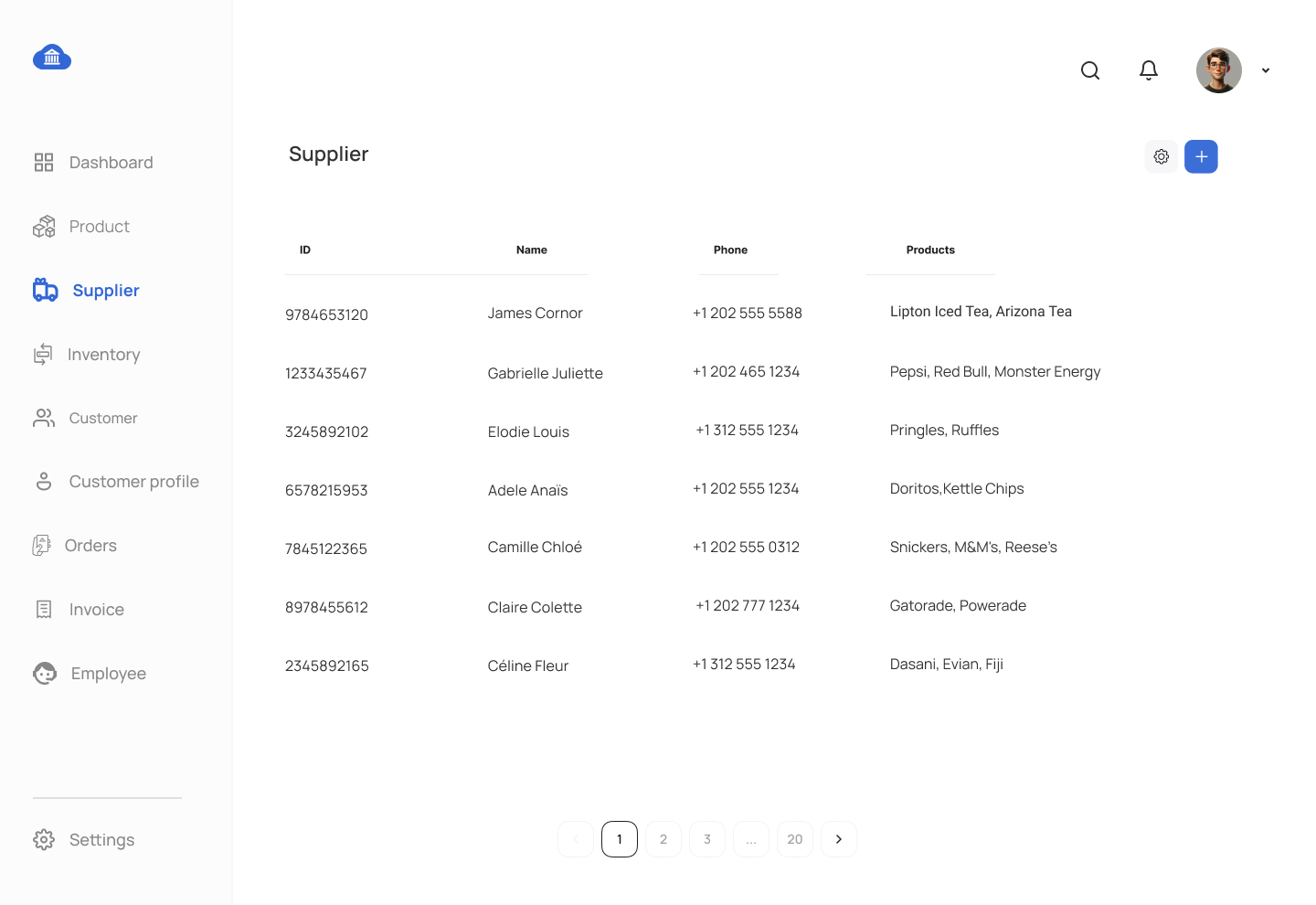

Question 4: Create the SUPPLIER Table with a Foreign Key

Define a SUPPLIER table:

supplier_id as a primary key with auto-increment functionality.
supplier_name as a string of maximum length 255 characters, not null.
contact_number as a string, not null.
active_flag as a boolean, set true as default, not null.
created_at as a datetime field, default it to system timestamp, not null.

Question 5: Define the SUPPLIER_PRODUCT Table

Write the SQL statement to create a many-to-many relationship between suppliers and products. This will require the SUPPLIER_PRODUCT table, which includes:

supplier_id as a foreign key referencing the SUPPLIER table.
product_id as a foreign key referencing the PRODUCT table.
created_at as a datetime field, default it to system timestamp, not null.

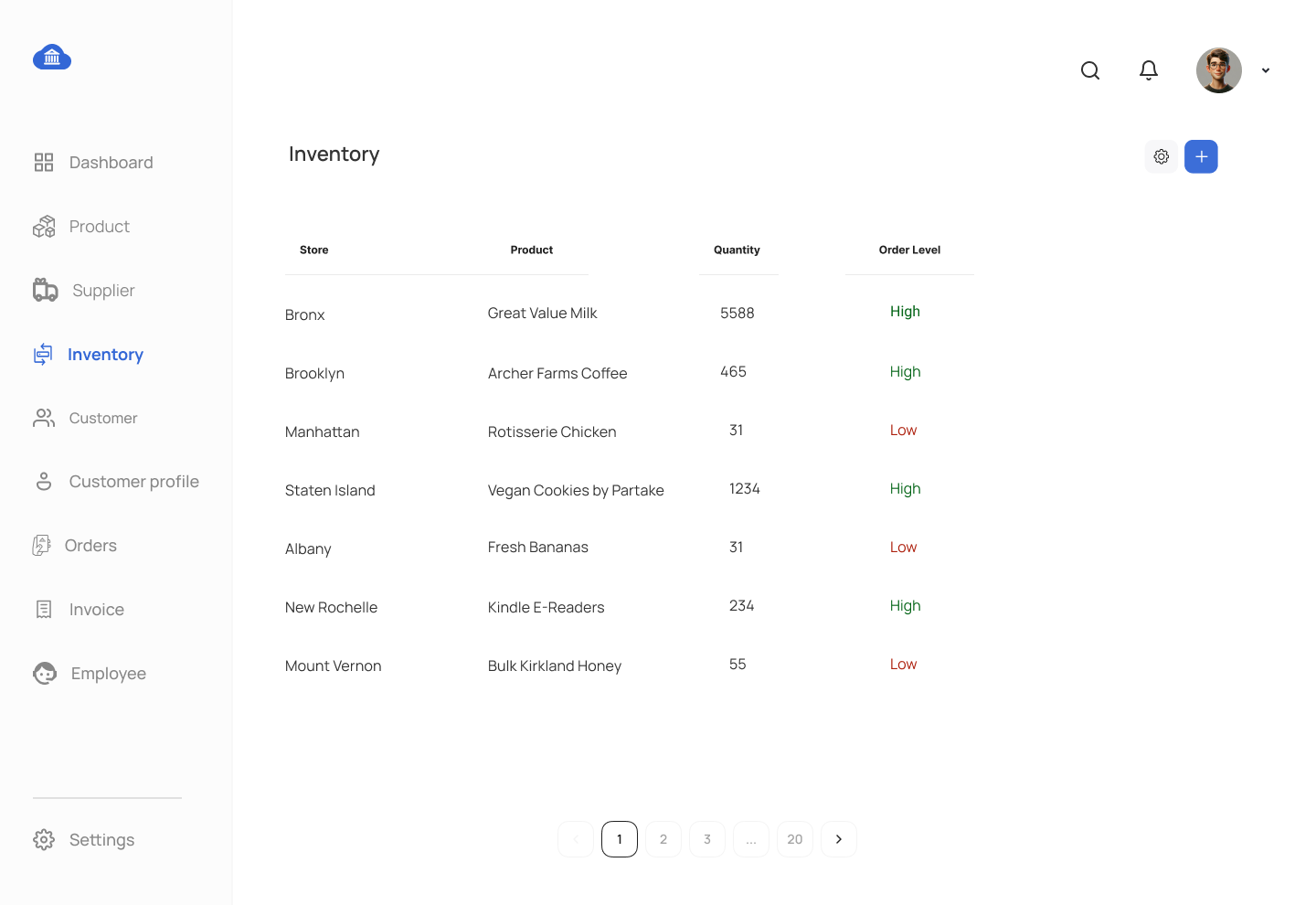

Question 6: Create the INVENTORY Table

Write a DDL SQL statement to create an INVENTORY table with the following details:

store_id as a foreign key referencing the STORE table, not null.
product_id as a foreign key referencing the PRODUCT table, not null.
quantity_in_stock as an integer, not null.
created_at as a datetime field, default it to system timestamp, not null.

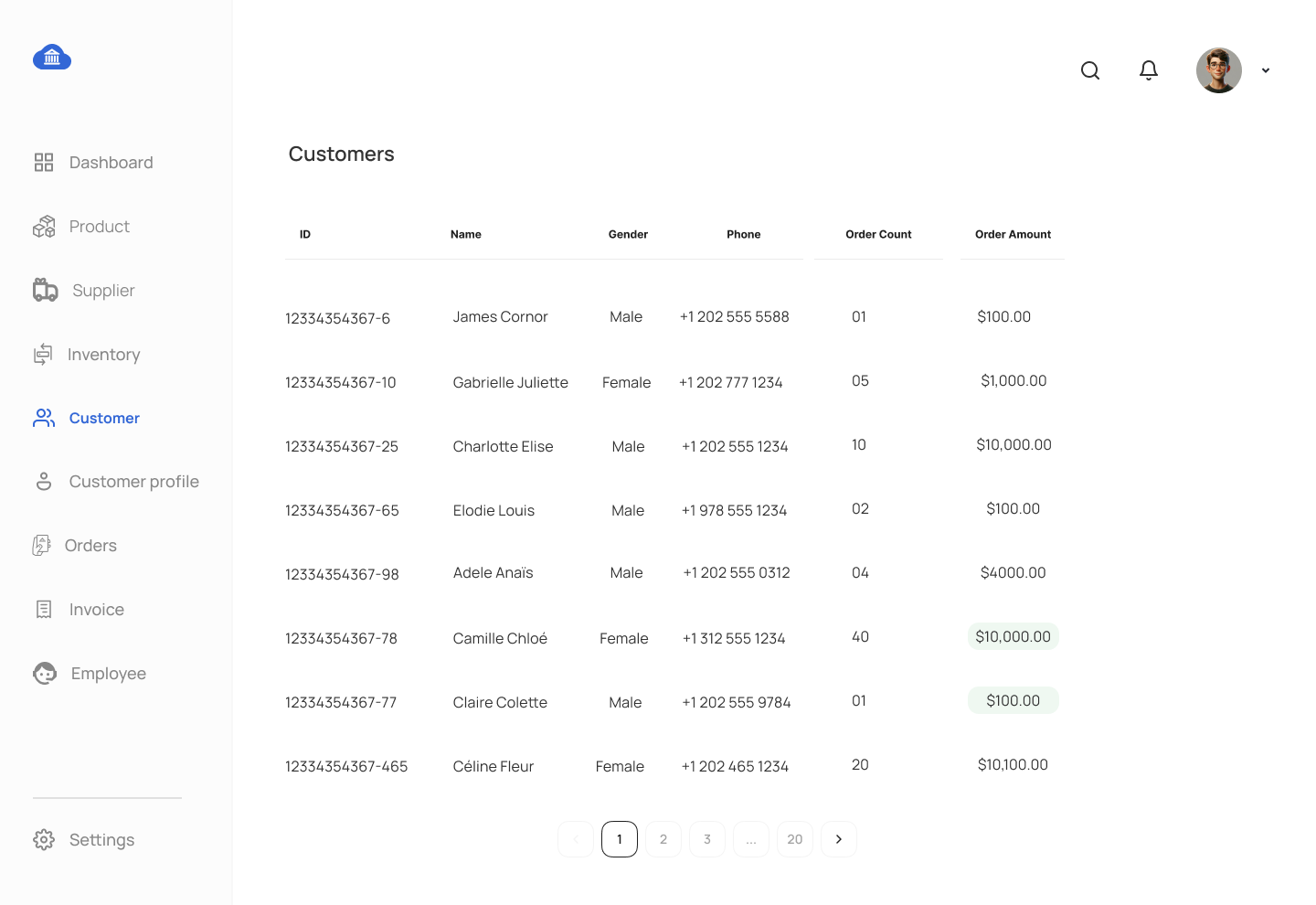

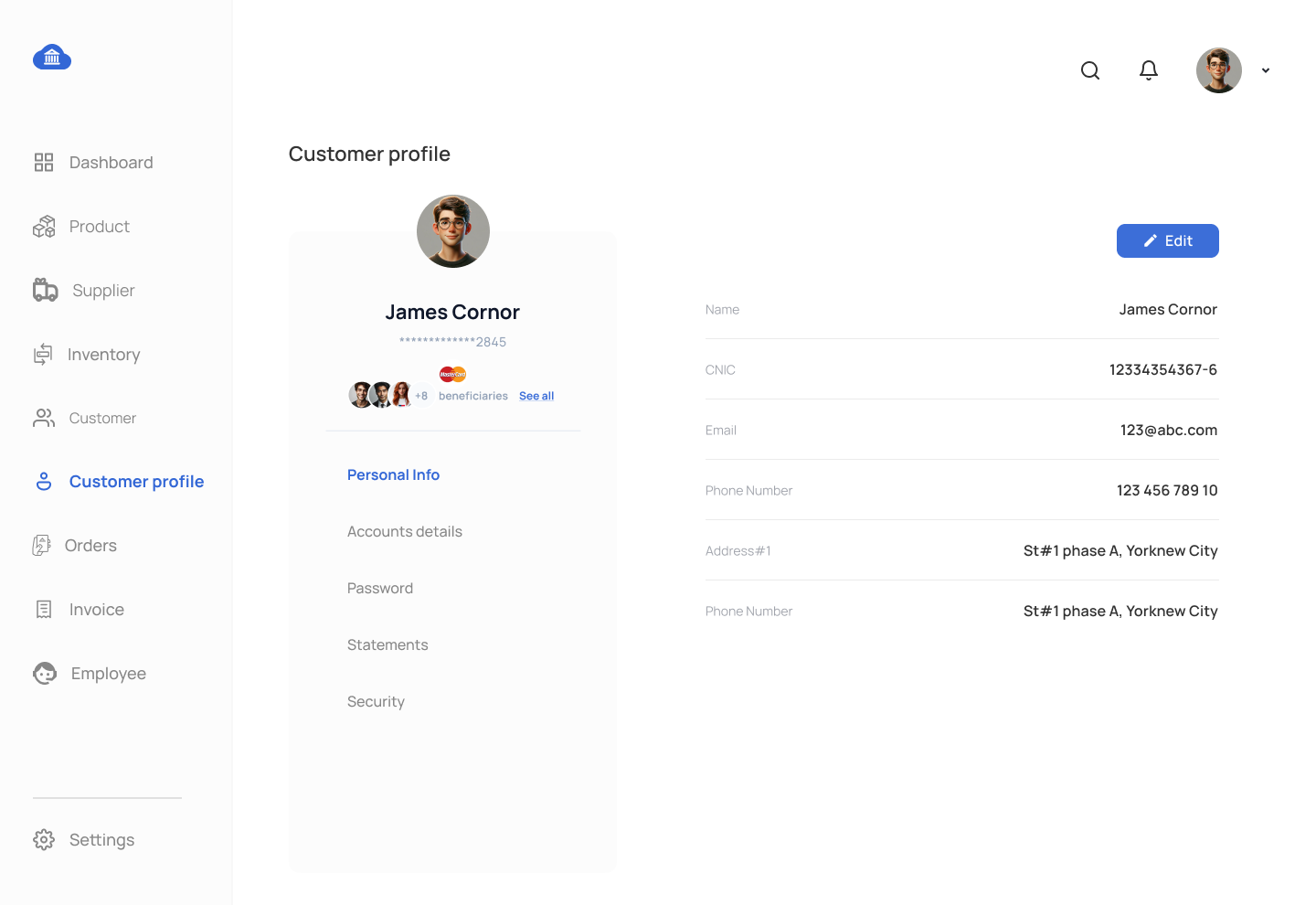

Question 7: Create the CUSTOMER Table with Constraints

Create a CUSTOMER table with the following specifications:

customer_id as a primary key with auto-increment functionality.
first_name as a string of maximum length 255 characters, not null.
last_name as a string of maximum length 255 characters, null.
gender as a char of maximum length 1, not null ('M' or 'F').
ID_type as a string with a maximum length of 50 characters (e.g., "passport" or "driving license"), not null.
ID_number as a string of maximum length 255 characters (passport number or others), not null.
email as a string, unique and not null.
phone_number as a string, not null.
address as a string, not null.
city_id as a foreign key referencing the CITY table.
created_at as a datetime field, default it to system timestamp, not null.

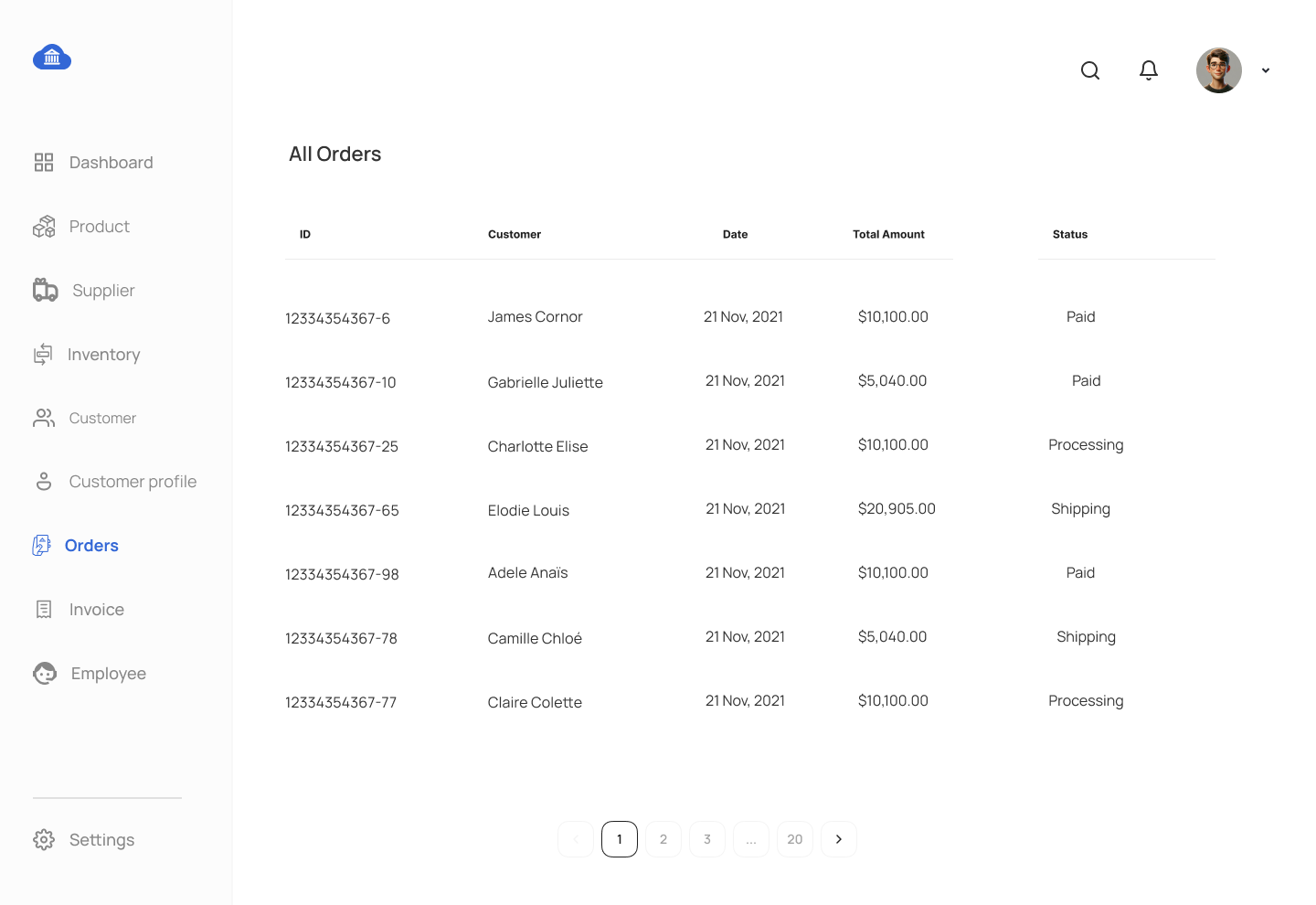

Question 8: Create the ORDER Table

Define an ORDER table with the following details:

order_id as a primary key with auto-increment functionality.
order_date as a date field, not null, with the default value of the current date.
total_amount as a decimal (10, 2), not null.
delivered_duration as a time, null.
customer_id as a foreign key referencing the CUSTOMER table, not null.
store_id as a foreign key referencing the STORE table, not null.
order_status as a string, not null.
created_at as a datetime field, default it to system timestamp, not null.

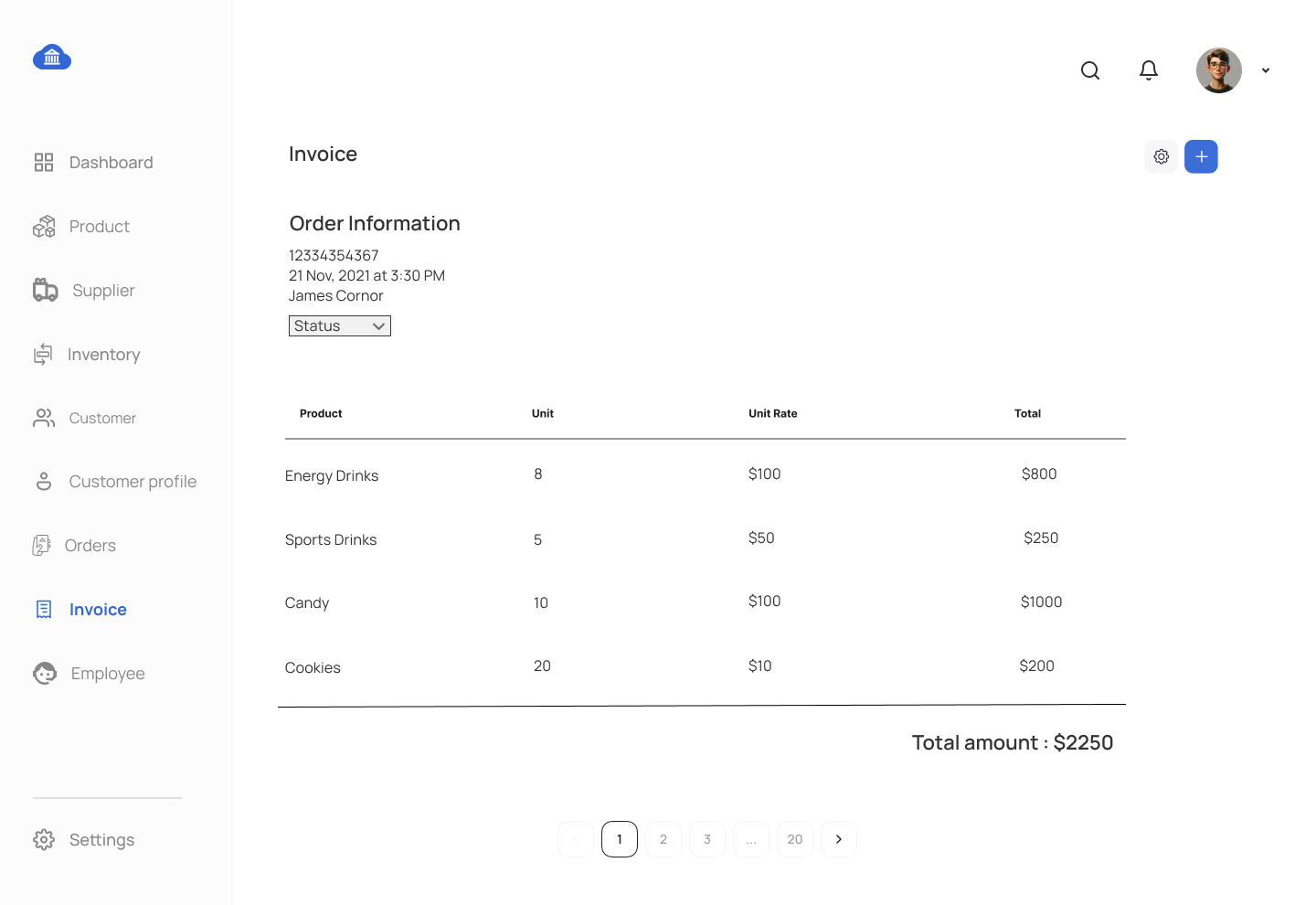

Question 9: Create the ORDER_PRODUCT Table

Define an ORDER_PRODUCT table with the following details:

order_id as a primary key with auto-increment functionality.
product_id as a foreign key referencing the PRODUCT table, not null.
units as a integer, not null.
unit_rate as a decimal (10, 2), not null.
total_amount as a decimal (10, 2), not null.
created_at as a datetime field, default it to system timestamp, not null.

Question 10: Create the PAYMENT Table

Define a PAYMENT table with the following specifications:

payment_id as a primary key with auto-increment functionality.
payment_date as a date, not null, with the default value being the current date.
amount_paid as a decimal (10, 2), not null.
order_id as a foreign key referencing the ORDER table, not null.
created_at as a datetime field, default it to system timestamp, not null.

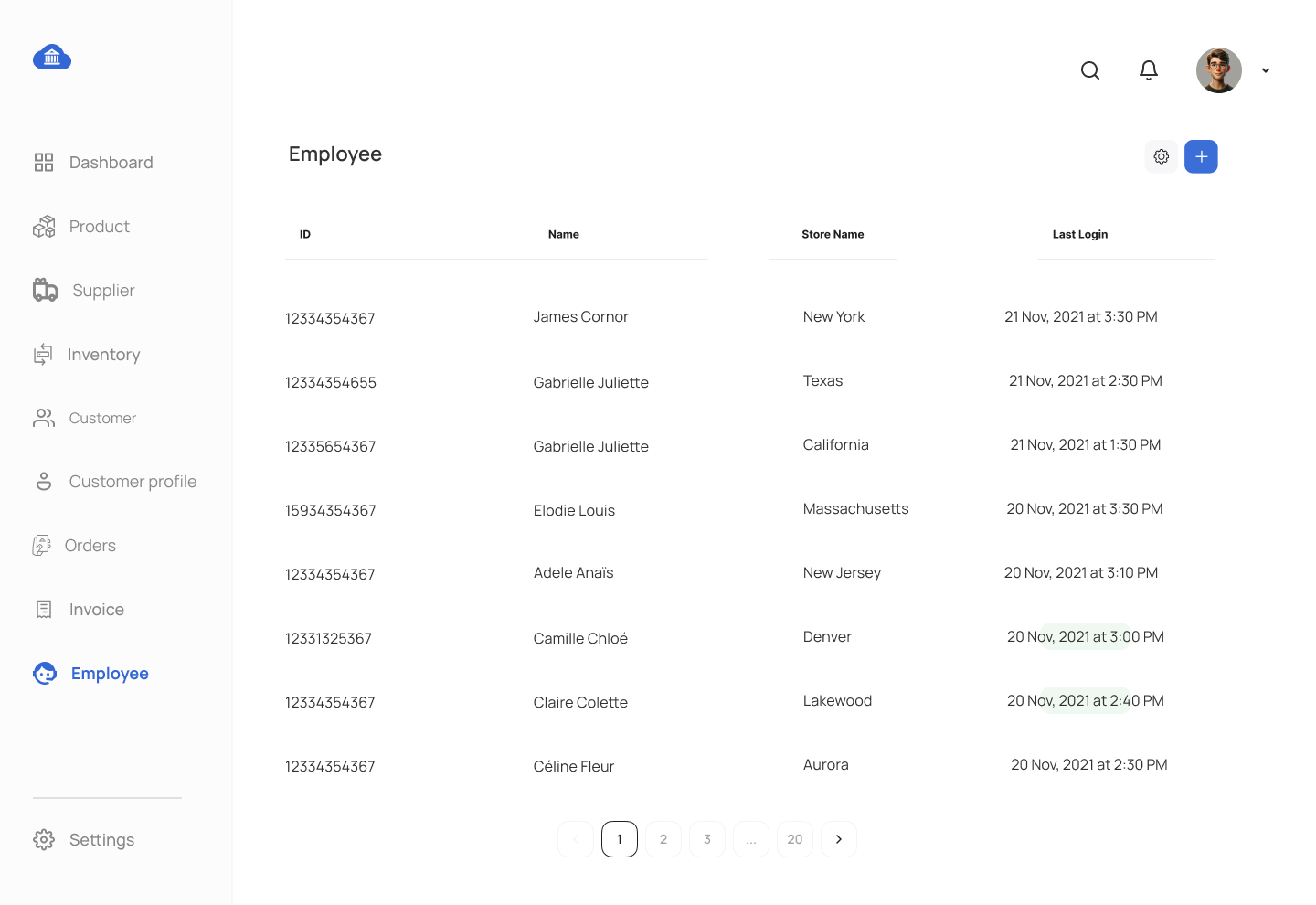

Question 11: Define the EMPLOYEE Table with Relationships

Write the SQL statement to create an EMPLOYEE table that includes:

employee_id as a primary key with auto-increment functionality.
first_name and last_name as strings, both not null.
email as a unique string, not null.
hire_date as a date field, not null.
salary as a decimal (10, 2), not null.
store_id as a foreign key referencing the STORE table.
created_at as a datetime field, not null.

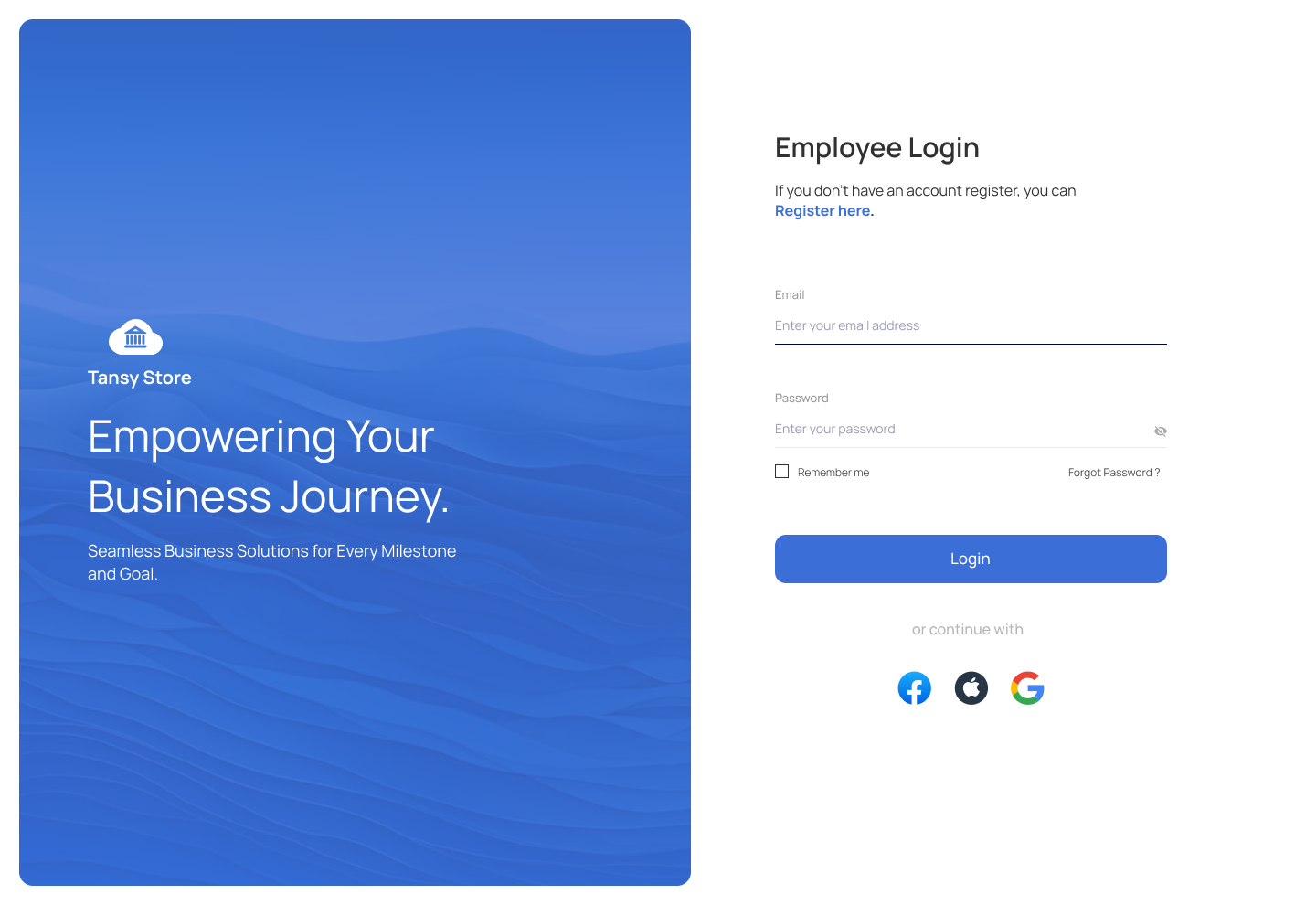

Question 12: Create the EMPLOYEE_LOGIN Table

Write a DDL SQL statement to create an EMPLOYEE_LOGIN table (one-to-one relationship with employee table):

employee_id as a foreign key referencing the EMPLOYEE table.
login_id can use alpha numeric login id or email as login id, not null.
password must encrypt the password before storing it in the database table.
active_flag use numeric, 0 or 1, you can lock the customer login when required, not null.
last_login_datetime as a timestamp, last successfull login date for a given customer.

Question 13: Create the DISCOUNT Table

Write a DDL SQL statement to create a DISCOUNT table:

discount_id as the primary key with auto-increment functionality.
discount_code as a string, unique and not null, not null.
discount_percentage as a decimal (5, 2), not null.
created_at as a datetime field, default it to system timestamp, not null.
Add a CHECK constraint to ensure that the discount_percentage is between 0 and 100.

Question 14: Create the AUDIT_LOG Table

Define an AUDIT_LOG table to track changes in the store system:

log_id as a primary key with auto-increment functionality.
log_date as a date field, not null.
action as a string to describe the action performed.
employee_id as a foreign key referencing the EMPLOYEE table.

Question 15: Create the RETURN_POLICY Table with Constraints

Write a DDL SQL statement to create a RETURN_POLICY table:

policy_id as a primary key with auto-increment functionality.
return_window_days as an integer, not null.
Add a CHECK constraint to ensure return_window_days is greater than 0.
restocking_fee as a decimal (5, 2), not null.
created_at as a datetime field, default it to system timestamp, not null.

Question 16: Define the ORDER_DISCOUNT Table

Write the SQL statement to create a many-to-many relationship between suppliers and products. This will require the ORDER_DISCOUNT table, which includes:

order_id as a foreign key referencing the ORDER table.
discount_id as a foreign key referencing the DISCOUNT table.
created_at as a datetime field, default it to system timestamp, not null.

Question 17: Add a Column to the EMPLOYEE Table

Write a SQL statement to add a phone_number column of type VARCHAR(15) to the EMPLOYEE table.

Question 18: Alter a Column in the CUSTOMER Table

Write a SQL statement to alter the email column in the CUSTOMER table, increasing its length to 255 characters.

Question 19: Drop a Column from the PRODUCT Table

Write a SQL statement to drop the quantity_in_stock column from the PRODUCT table.

Question 20: Rename the RETURN_POLICY Table

Write a SQL statement to rename the RETURN_POLICY table to STORE_POLICY.

Question 21: Drop the STORE_POLICY Table

Write a SQL statement to drop the STORE_POLICY table.

Question 22: Add a Primary Key to existing table

Add a composite primary key to the INVENTORY table on store_id and product_id columns.

Question 23: Add a Primary Key to existing table

Add a composite primary key to the SUPPLIER_PRODUCT table on supplier_id and product_id columns.

Question 24: Alter the STORE Table to Add a Foreign Key

Write a SQL statement to add a city_id column to STORE Table along with foreign key referencing the CITY table.

Question 25: Add a Foreign Key to the INVENTORY Table

Add a foreign key in the INVENTORY table to reference the SUPPLIER table.

Question 26: Drop a Foreign Key on the EMPLOYEE Table

Remove the foreign key in the EMPLOYEE table that references the STORE table.

Question 27: Add a CHECK Constraint on the ORDER_PRODUCT Table

Write a SQL statement to add a CHECK constraint to the ORDER_PRODUCT table ensuring that the units is greater than 0.

Question 28: Add a CHECK Constraint on the ORDER Table

Write a SQL statement to add a CHECK constraint to the ORDER table ensuring that the order_status is in (Accepted, Packing, Ready for Delivery, Shipping, Delivered, Paid, Closed).

Question 29: Add a UNIQUE Constraint on the ORDER_PRODUCT Table

Write a SQL statement to add a UNIQUE constraint on the ORDER_PRODUCT table to prevent duplicate product_id values for a given order_id.

Question 30: Add a DEFAULT Constraint on the ORDER_PRODUCT Table

Write a SQL statement to add a DEFAULT constraint on the ORDER_PRODUCT table to automatically calculate the total_amount as the product of units and unit_price.

Question 31: Add a DEFAULT Constraint on the EMPLOYEE Table

Write a SQL statement to add a current system timestamp DEFAULT constraint to the EMPLOYEE table on the created_at column.

Question 32: Add Indexes to the PRODUCT and CUSTOMER Tables

Write SQL statements to:

Add an index on the product_name column in the PRODUCT table.
Add an index on the last_name column in the CUSTOMER table.

Question 33: Drop an INDEX on the CUSTOMER Table

Write a SQL statement to drop the index on the last_name column in the CUSTOMER table.

Question 34: Enforce UNIQUE Constraints on all applicable Tables

Apply UNIQUE constraints to columns across the entire database wherever duplicate data is not permitted.

GOOD LUCK WITH YOUR ASSIGNMENT!!!

Don't forget to contact us if you need any further assistance with your assignments, and most importantly, for a manual review and approval of your work.
