Objective:

You are required to address a set of Data Definition Language (DDL) tasks for a Company Management System. Each query focuses on distinct DDL tasks, including the creation of tables, application of constraints, and establishment of relationships between tables.

Requirements:

You will need to complete at least 25 different DDL tasks, covering table creation, primary keys, foreign keys, constraints, and indexes. Each task represents a key part of designing the structure of the Company Management System.

Question 1: Create the DEPARTMENT Table

Write a DDL SQL statement to create a DEPARTMENT table with the following requirements:

• department_id as a primary key with auto-increment functionality.
• department_name as a string of maximum length 255 characters, not null.
• location as a string.
• created_at as a datetime field, default it to system timestamp, not null.

Question 2: Create the EMPLOYEE Table with Constraints

Create an EMPLOYEE table with the following specifications:

• employee_id as the primary key with auto-increment functionality.
• first_name as a variable character string, not to exceed 100 characters, not null.
• last_name as a string with a maximum of 100 characters.
• hire_date as a date field, not null.
• salary as a decimal with a maximum precision of 10, 2.
• Add a CHECK constraint on salary to ensure it is greater than 0.
• yearly_leave_count as a number.
• created_at as a datetime field, not null.

Question 3: Create the PRODUCT Table with a CHECK Constraint

Write a DDL SQL statement to create a PRODUCT table:

• product_id as the primary key with auto-increment functionality.
• product_name as a string of maximum length 255 characters, not null.
• price as a decimal, not null.
• Add a CHECK constraint to ensure the price is greater than 0.
• product_category as string, not null.
• order_level as number
• current_quantity as number
• created_at as a datetime field, default it to system timestamp, not null.

Question 4: Create the CLIENT Table

Define a CLIENT table:

• client_id as a primary key with auto-increment functionality.
• client_name as a string with a maximum length of 255 characters, not null.
• email as a string that must be unique and cannot be null.
• created_at as a datetime field, default it to system timestamp, not null.

Question 5: Create the SUPPLIER Table

Write a DDL SQL statement to create a SUPPLIER table with the following details:

• supplier_id as the primary key with auto-increment functionality.
• supplier_name as a string of maximum length 255 characters, not null.
• contact_number as a string.
• Ensure that the contact_number is unique across all suppliers.
• created_at as a datetime field, default it to system timestamp, not null.

Question 6: Create the PURCHASE_ORDER Table

Write a DDL SQL statement to create a PURCHASE_ORDER table with the following details:

• order_id as the primary key with auto-increment functionality.
• order_date as a date field, not null.
• total_amount as a decimal field, not null.
• created_at as a datetime field, default it to system timestamp, not null.

Question 7: Create the PURCHASE_ORDER_DETAIL Table

Write a DDL SQL statement to create a PURCHASE_ORDER_DETAIL table with the following details:

• order_detail_id as the primary key with auto-increment functionality.
• quantity as a number field, not null.
• unit_amount as a decimal field, not null.
• total_amount as a decimal field, not null.
• product_id as a foreign key, not null.
• order_id as a foreign key referencing the PURCHASE_ORDER table.

Question 8: Create the PROJECT Table

Define a PROJECT table with the following details:

• project_id as the primary key with auto-increment functionality.
• project_name as a string with a maximum length of 255 characters, not null.
• start_date as a date field, not null.
• end_date as a date field.
• Add a CHECK constraint to ensure end_date is greater than start_date.
• active_status as boolean, default to true.
• created_at as a datetime field, default it to system timestamp, not null.

Question 9: Define the PROJECT_PRODUCT_USED Relationship Table

Write the SQL statement to create an PROJECT_PRODUCT_USED table that tracks which employees are working on which projects. Include:

• project_id as a foreign key, not null.
• product_id as a foreign key, not null.
• quantity as a number, not null.
• created_at as a datetime field, default to system timestamp, not null.
• Set up a composite primary key using both columns.

Question 10: Define the EMPLOYEE_PROJECT Relationship Table

Write the SQL statement to create an EMPLOYEE_PROJECT table that tracks which employees are working on which projects. Include:

• project_id as a foreign key, not null.
• employee_id as a foreign key, not null.
• task as a string.
• task_due_date as a date.
• created_at as a datetime field, default it to system timestamp, not null.

Question 11: Define the CONTRACT Table with Foreign Keys

Write the SQL statement to create a CONTRACT table that includes:

• contract_id as an auto-incrementing primary key.
• contract_date as a date, not null.
• amount as a decimal (12, 2), not null.
• client_id as a foreign key, not null.
• project_id as a foreign key, not null.
• created_at as a datetime field, default it to system timestamp, not null.

Question 12: Create the INVOICE Table with Constraints

Define an INVOICE table with the following specifications:

• invoice_id as the primary key with auto-increment functionality.
• project_id as the foreign key, not null.
• invoice_date as a date, with the default value being the current date.
• amount_due as a decimal (12, 2), not null.
• status as paid or unpaid
• Add a CHECK constraint to ensure the amount_due is greater than 0.
• created_at as a datetime field, default it to system timestamp, not null.

Question 13: Create the RECEIVABLE_TRANSACTION Table with a CHECK Constraint

Write a DDL SQL statement to create a PAYABLE_TRANSACTION table:

• receivable_transaction_id as the primary key with auto-increment functionality.
• description as a string of maximum length 255 characters.
• amount as a decimal, not null.
• payment_date as a timestamp, not null.
• contract_invoice_id as the foreign key to INVOICE table, not null.
• Add a CHECK constraint to ensure the amount is greater than 0.

Question 14: Create the PAYABLE_TRANSACTION Table with a CHECK Constraint

Write a DDL SQL statement to create a PAYABLE_TRANSACTION table:

• payable_transaction_id as the primary key with auto-increment functionality.
• description as a string of maximum length 255 characters.
• amount as a decimal, not null.
• payment_date as a timestamp, not null.
• purchase_order_id as the foreign key to PURCHASE_ORDER table, not null.
• Add a CHECK constraint to ensure the amount is greater than 0.

Question 15: Create the TIMESHEET Table with Defaults

Create a TIMESHEET table:

• timesheet_id as the primary key with auto-increment functionality.
• employee_id as a foreign key, not null.
• date as a date field, defaulted to the current date.
• hours_worked as a time value, not null.
• project_id as a foreign key, not null.
• created_at as a datetime field, default it to system timestamp, not null.

Question 16: Create the EMPLOYEE_LEAVES Table

Define an EMPLOYEE_LEAVES table to track system changes:

• leave_id as the primary key with auto-increment functionality.
• employee_id as a foreign key, not null.
• start_date as a date field, not null.
• end_date as a date field, not null.
• reason as a string.
• approved_employee_id as a foreign key referencing the EMPLOYEE table.
• created_at as a datetime field, default it to system timestamp, not null.

Question 17: Create the AUDIT_LOG Table

Define an AUDIT_LOG table to track system changes:

• log_id as the primary key with auto-increment functionality.
• log_date as a date field, not null.
• action as a string to describe the action performed.
• employee_id as a foreign key referencing the EMPLOYEE table.

Question 18: Create the EMPLOYEE_LOGIN Table

Write a DDL SQL statement to create an EMPLOYEE_LOGIN table (one-to-one relationship with employee table):

• employee_id as a foreign key referencing the EMPLOYEE table.
• login_id can use alpha numeric login id or email as login id, not null.
• password must encrypt the password before storing it in the database table.
• active_flag as boolean, 0 or 1, you can lock the customer login when required, not null.
• last_login_datetime as a timestamp, last successful login date for a given customer.

Question 19: Add a Column to the EMPLOYEE Table

Write a SQL statement to add a phone_number column of type VARCHAR(15) to the EMPLOYEE table.

Question 20: Alter a Column in the CLIENT Table

Write a SQL statement to alter the email column in the CLIENT table, increasing its length to 255 characters.

Question 21: Drop a Column from the PAYABLE_TRANSACTION Table

Write a SQL statement to drop the description column from the PAYABLE_TRANSACTION table.

Question 22: Rename the AUDIT_LOG Table

Write a SQL statement to rename the AUDIT_LOG table to AUDIT_LOGS.

Question 23: Drop the EMPLOYEE_LOGIN Table

Write a SQL statement to drop the ** EMPLOYEE_LOGIN** table.

Question 24: Add a Primary Key on the EMPLOYEE_PROJECT Table

• Set up a composite primary key using project_id and employee_id.

Question 25: Add a Foreign Key column to the EMPLOYEE Table

Add a foreign key in the EMPLOYEE table to reference the DEPARTMENT table.

Question 26: Alter the PURCHASE_ORDER Table to Add a Foreign Key

Write a SQL statement to add a supplier_id foreign key to the PURCHASE_ORDER table, referencing the SUPPLIER table.

Question 27: Add a CHECK Constraint on the PURCHASE_ORDER Table

Write a SQL statement to add a CHECK constraint to the PURCHASE_ORDER table, ensuring that the total_amount is greater than 0.

Question 28: Add a UNIQUE Constraint on the PROJECT Table

Write a SQL statement to add a UNIQUE constraint to the PROJECT table ensuring that the project_name is not repeated.

Question 29: Add a default Constraint on the EMPLOYEE Table

Write a SQL statement to add a current system timestamp DEFAULT constraint to the EMPLOYEE table on created_at column.

Question 30: Add Indexes to the EMPLOYEE and PROJECT Tables

Write SQL statements to:

• Add an index on the last_name column in the EMPLOYEE table.
• Add an index on the project_name column in the PROJECT table.

Question 31: Drop an Index from the EMPLOYEE Table

Write a SQL statement to drop the index on the last_name column in the EMPLOYEE table.

Question 32: Enforce UNIQUE constraints on all applicable tables.

Apply UNIQUE constraints to columns across the entire database wherever duplicate data is not permitted.

GOOD LUCK WITH YOUR ASSIGNMENT!!!

Don't forget to contact us if you need any further assistance with your assignments, and most importantly, for a manual review and approval of your work.

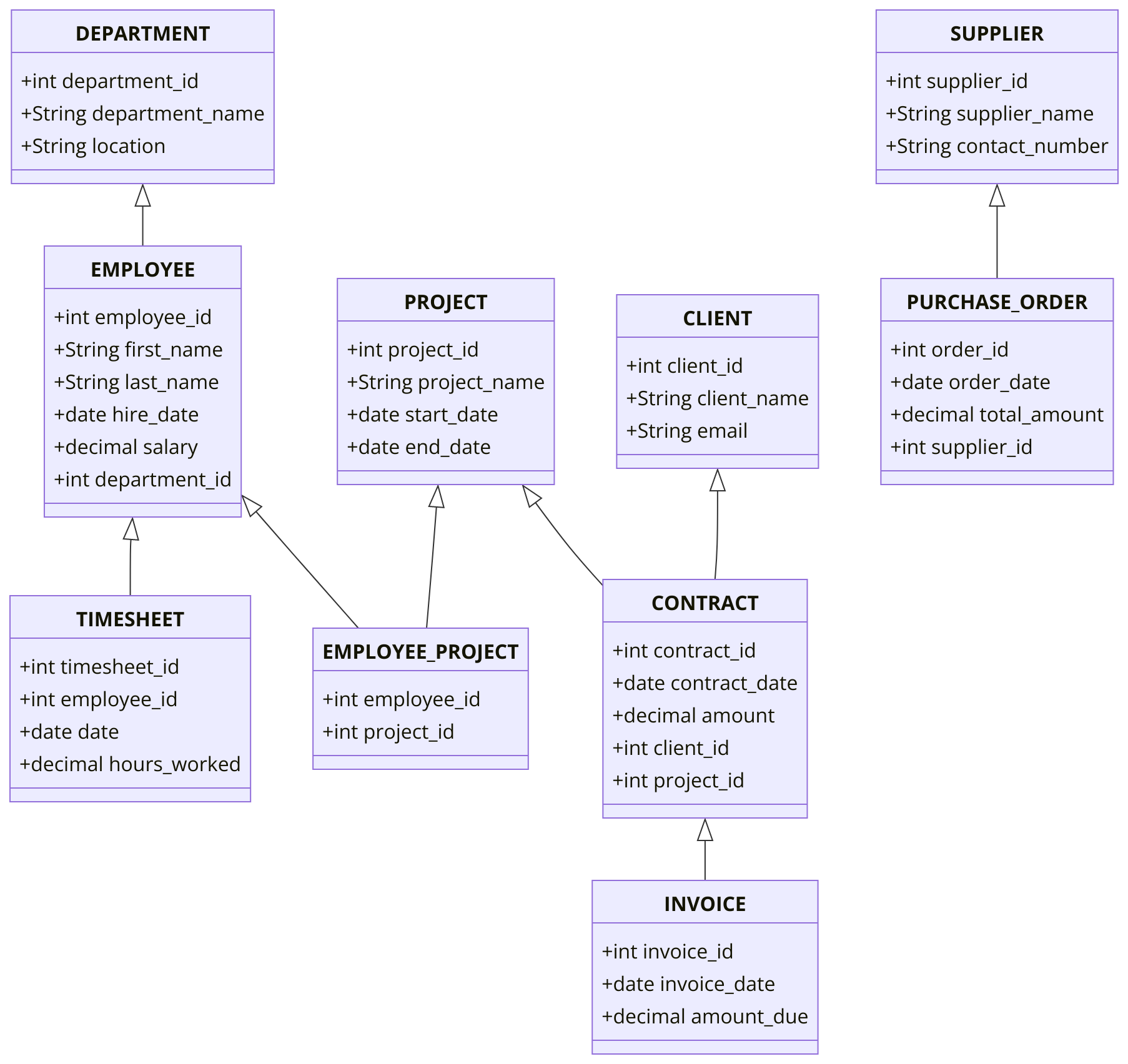

Sample ERD Data Model for Company Management System
