Objective:

You are required to address a set of Data Definition Language (DDL) tasks for a Library Management System. Each query focuses on distinct DDL tasks, including the creation of tables, application of constraints, and establishment of relationships between tables.

Requirements:

You will need to complete at least 20 different DDL tasks, covering table creation, primary keys, foreign keys, constraints, and indexes. Each task represents a key part of designing the structure of the Library Management System.

Question 1: Define the LIBRARY_BRANCH Table with Relationships

Write the SQL statement to create a LIBRARY_BRANCH table that includes:

• branch_id as a primary key with auto-increment functionality.
• branch_name as a string of maximum length 255 characters, not null.
• location as a string with a maximum length of 255 characters, not null.
• created_at as a datetime field, default it to system timestamp, not null.

Question 2: Create the EMPLOYEE Table

Create an EMPLOYEE table:

• employee_id as a primary key with auto-increment functionality.
• first_name as strings, not null.
• last_name as strings, not null.
• email as a unique string, not null.
• hire_date as a date field, not null.
• salary as a decimal (10, 2) field, not null.
• branch_id as a foreign key referencing the BOOK table, not null.
• created_at as a datetime field, not null.

Question 3: Create the AUTHOR Table with Constraints

Create a AUTHOR table with the following specifications:

• author_id as a primary key with auto-increment functionality.
• first_name as a string with a maximum length of 100 characters, and cannot be null.
• last_name as a string with a maximum length of 100 characters.
• email as a unique string, not null.
• phone_number as a string, not null.
• created_at as a datetime field, default it to system timestamp, not null.

Question 4: Create the BOOK_CATEGORY Table with a Foreign Key

Define a BOOK_CATEGORY table:

• book_category_id as a primary key with auto-increment functionality.
• category_name as a string of maximum length 100 characters, not null.
• created_at as a datetime field, default it to system timestamp, not null.

Question 5: Create the PUBLISHER Table

Write a DDL SQL statement to create a PUBLISHER table with the following details:

• publisher_id as the primary key with auto-increment functionality.
• publisher_name as a string with a maximum length of 255 characters, unique, not null.
• created_at as a datetime field, default it to system timestamp, not null.

Question 6: Create the BOOK Table

Write a DDL SQL statement to create a BOOK table with the following requirements:

• book_id as a primary key with auto-increment functionality.
• title as a string of maximum length 255 characters, not null.
• publication_year as an integer, not null.
• publisher_id as an integer, not null.
• isbn as a unique string of length 13, not null.
• created_at as a datetime field, default it to system timestamp, not null.

Question 7: Define the BOOK_AUTHOR Table

Write the SQL statement to create a many-to-many relationship between books and authors. This will require the BOOK_AUTHOR table, which includes:

• book_id as a foreign key referencing the BOOK table, not null.
• author_id as a foreign key referencing the AUTHOR table, not null.

Question 8: Create the BOOK_INVENTORY Table

Write a DDL SQL statement to create a BOOK_INVENTORY table:

• inventory_id as the primary key with auto-increment functionality.
• book_id as a foreign key referencing the BOOK table, not null.
• branch_id as a foreign key referencing the LIBRARY_BRANCH table, not null.
• quantity as an integer, not null.
• created_at as a datetime field, default it to system timestamp, not null.

Question 9: Create the OVERDUE_POLICY Table with Constraints

Write a DDL SQL statement to create an OVERDUE_POLICY table:

• policy_id as a primary key with auto-increment functionality.
• max_days_allowed as an integer, not null.
• fine_per_day as a decimal (5, 2), not null.
• created_at as a datetime field, default it to system timestamp, not null.
• Add a CHECK constraint to ensure max_days_allowed is greater than 0.

Question 10: Create the MEMBER Table with Constraints

Create a MEMBER table with the following specifications:

• member_id as a primary key with auto-increment functionality.
• first_name as a string with a maximum length of 100 characters, not null.
• last_name as a string with a maximum length of 100 characters.
• email as a unique string, not null.
• phone_number as a string, not null.
• gender as a string, null.
• membership_expiry_date as a date field, with the default value of the current date.
• created_at as a datetime field, default it to system timestamp, not null.
• Add a CHECK constraint to ensure gender is M or F.

Question 11: Create the MEMBERSHIP_TYPE Table with Constraints

Write a DDL SQL statement to create a MEMBERSHIP_TYPE table:

• membership_type_id as a primary key with auto-increment functionality.
• membership_type as a string (e.g., "Free", "Premium"), not null.
• active_flag as a boolean, default to true, not null.
• validity_days as a number, not null.
• created_at as a datetime field, default it to system timestamp, not null.
• Add a CHECK constraint to ensure the subscription_type is in ("Free", "Standard:, "Premium").

Question 12: Create the MEMBERSHIP_PAYMENT Table with Constraints

Write a DDL SQL statement to create a MEMBERSHIP_PAYMENT table:

• payment_id as a primary key with auto-increment functionality.
• membership_type_id as a foreign key referencing the MEMBERSHIP_TYPE table, not null.
• amount_paid as a decimal (10, 2), not null.
• payment_date as a datetime, not null.
• member_id as a foreign key referencing the MEMBER table, not null.
• created_at as a datetime field, default it to system timestamp, not null.
• Add a CHECK constraint to ensure the amount_paid is greater than 0.

Question 13: Create the LOAN Table

Define a LOAN table with the following details:

• loan_id as a primary key with auto-increment functionality.
• loan_date as a date field, not null, with the default value of the current date, null.
• due_date as a date field, not null.
• return_date as a date field, nullable.
• book_id as a foreign key referencing the BOOK table, not null.
• member_id as a foreign key referencing the MEMBER table, not null.
• issue_branch_id as a foreign key referencing the LIBRARY_BRANCH table, not null.
• return_branch_id as a number, null.
• created_at as a datetime field, default it to system timestamp, not null.

Question 14: Create the FINE Table

Define a FINE table with the following specifications:

• fine_id as a primary key with auto-increment functionality.
• fine_amount as a decimal (5, 2), not null.
• fine_date as a date, not null.
• overdue_days as a number, not null.
• return_time as a time, not null.
• loan_id as a foreign key referencing the LOAN table, not null.
• collected_by_employee_id as a foreign key referencing the EMPLOYEE table, not null.
• collected_branch_id as a foreign key referencing the LIBRARY_BRANCH table, not null.
• created_at as a datetime field, default it to system timestamp, not null.

Question 15: Create the AUDIT_LOG Table

Define an AUDIT_LOG table to track changes in the library system:

• log_id as a primary key with auto-increment functionality.
• log_date as a date field, not null.
• action as a string to describe the action performed.
• employee_id as a foreign key referencing the EMPLOYEE table.

Question 16: Create the EMPLOYEE_LOGIN Table

Write a DDL SQL statement to create an EMPLOYEE_LOGIN table (one-to-one relationship with employee table):

• employee_id as a foreign key referencing the CUSTOMER table.
• login_id can use alpha numeric login id or email as login id, not null.
• password must encrypt the password before storing it in the database table, not null.
• active_flag use numeric, 0 or 1, you can lock the customer login when required, not null.
• last_login_datetime as a timestamp, last successfull login date for a given employee.

Question 17: Add a Column to the EMPLOYEE Table

Write a SQL statement to add a phone_number column of type VARCHAR(15) to the EMPLOYEE table.

Question 18: Alter a Column in the MEMBER Table

Write a SQL statement to alter the email column in the MEMBER table, increasing its length to 300 characters.

Question 19: Drop a Column from the EMPLOYEE_LOGIN Table

Write a SQL statement to drop the active_flag column from the EMPLOYEE_LOGIN table.

Question 20: Rename the AUDIT_LOG Table

Write a SQL statement to rename the AUDIT_LOG table to AUDIT_LOGS.

Question 21: Drop the EMPLOYEE_LOGIN Table

Write a SQL statement to drop the EMPLOYEE_LOGIN table.

Question 22: Add a Primary Key on the BOOK_AUTHOR Table

• Set up a composite primary key using author_id and book_id.

Question 23: Add a Foreign Key column to the BOOK Table

Add a foreign key in the BOOK table to reference the BOOK_CATEGORY table.

Question 24: Alter the LOAN Table to Add a Foreign Key

Write a SQL statement to add a branch_id foreign key to the LOAN table, referencing the LIBRARY_BRANCH table.

Question 25: Add a Foreign Key to BOOK Table

Add a foreign key in the BOOK table to referencing to PUBLISHER table.

Question 26: Add a Foreign Key column to the LOAN Table

Add a foreign key in the LOAN table to reference the EMPLOYEE table (indicating which employee issued the loan).

Question 27: Add a CHECK Constraint on the LOAN Table

Write a SQL statement to add a CHECK constraint to the LOAN table ensuring that the loan_date is before the due_date.

Question 28: Add a UNIQUE Constraint on the BOOK_CATEGORY Table

Write a SQL statement to add a UNIQUE constraint to the BOOK_CATEGORY table ensuring that the category_name is not repeated.

Question 29: Add a default Constraint on the EMPLOYEE Table

Write a SQL statement to add a current system timestamp DEFAULT constraint to the EMPLOYEE table on created_at column.

Question 30: Add Indexes to the BOOK and MEMBER Tables

Write SQL statements to:

• Add an index on the title column in the BOOK table.
• Add an index on the last_name column in the MEMBER table.

Question 31: Drop an Index from the BOOK Table

Write a SQL statement to drop the index on the title column in the BOOK table.

Question 32: Enforce UNIQUE constraints on all applicable tables.

Apply UNIQUE constraints to columns across the entire database wherever duplicate data is not permitted.

GOOD LUCK WITH YOUR ASSIGNMENT!!!

Don't forget to contact us if you need any further assistance with your assignments, and most importantly, for a manual review and approval of your work.

To gain complete access, login with gmail or outlook, no need of signup. click here

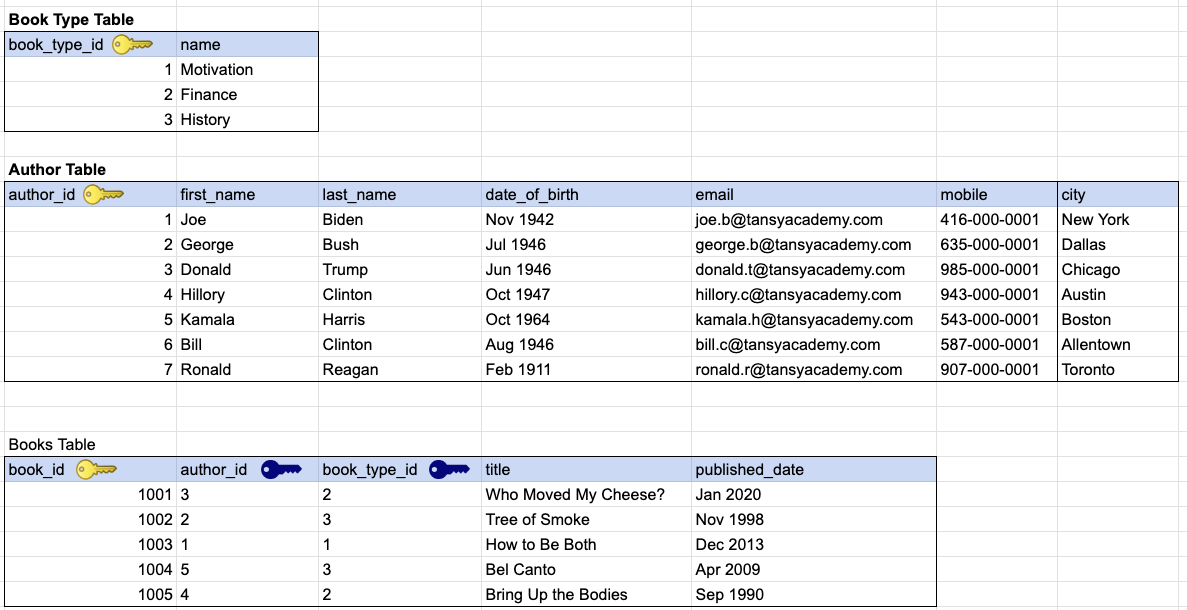

SAMPLE TABLE DESIGN
