ERD Data Model Assignment for Beginners in Oracle

Introduction to ERD (Entity-Relationship Diagram)

An Entity-Relationship Diagram (ERD) is a graphical representation of entities and their relationships in a database system. It helps in visualizing the structure of a database before its implementation. In this assignment, you will learn how to design an ERD for a Library Management System using Oracle.

The ERD will guide you in building a strong data model that handles key relationships between books, members, loans, and employees. By the end of the assignment, you will have created a complete data model with tables, relationships, and constraints for a library system.

Tools for Creating ERDs

To design an ERD, you can use tools such as Oracle SQL Developer Data Modeler or Lucidchart. Both offer intuitive interfaces to design ER diagrams and automatically generate DDL SQL scripts. These tools allow you to create a schema based on the structure defined by the ERD.

Objective of the Assignment

The objective of this assignment is to design and implement an ERD for a Library Management System in Oracle. You will define multiple tables, set up relationships between them, and implement constraints to ensure data integrity.

This assignment will cover 25 DDL tasks that will lead you through the process of creating a fully functioning database schema for a library system.

Assignment Tasks

Construct all the tables from Chapter 5 DDL assignment within the ERD diagram using an ERD tool.

• Begin by creating each table, then define the columns within the table on the ERD tool canvas.
• Specify the DATA TYPES and NULLABILITY for all columns.
• Set PRIMARY KEYS for the tables.
• Define auto increment (IDENTITY) columns as needed.
• Establish FOREIGN KEY relationships where necessary.
• Define INDEXES where applicable.
• Implement CHECK constraints as needed.
• Define DEFAULTS where applicable.
• Refer to Chapter 5 DDL assignment for detailed instructions on tables and columns (/oracle/data-definition-language-sql-ddl/sql-ddl-assignment-library-management-system-project).

Submission Instructions

1. ERD Design:

   • Option 1: Export your ERD as a PDF using pgAdmin 4.
   • Option 2: Export the ERD as a DDL SQL script.

2. SQL Scripts:

   • Submit SQL scripts for creating tables, constraints, indexes, and relationships.

3. Documentation:

   • Provide a brief explanation of the relationships between the tables and your design decisions.

Good luck with your assignment!
Don't forget to contact us if you need any further assistance with your assignments, and most importantly, for a manual review and approval of your work.

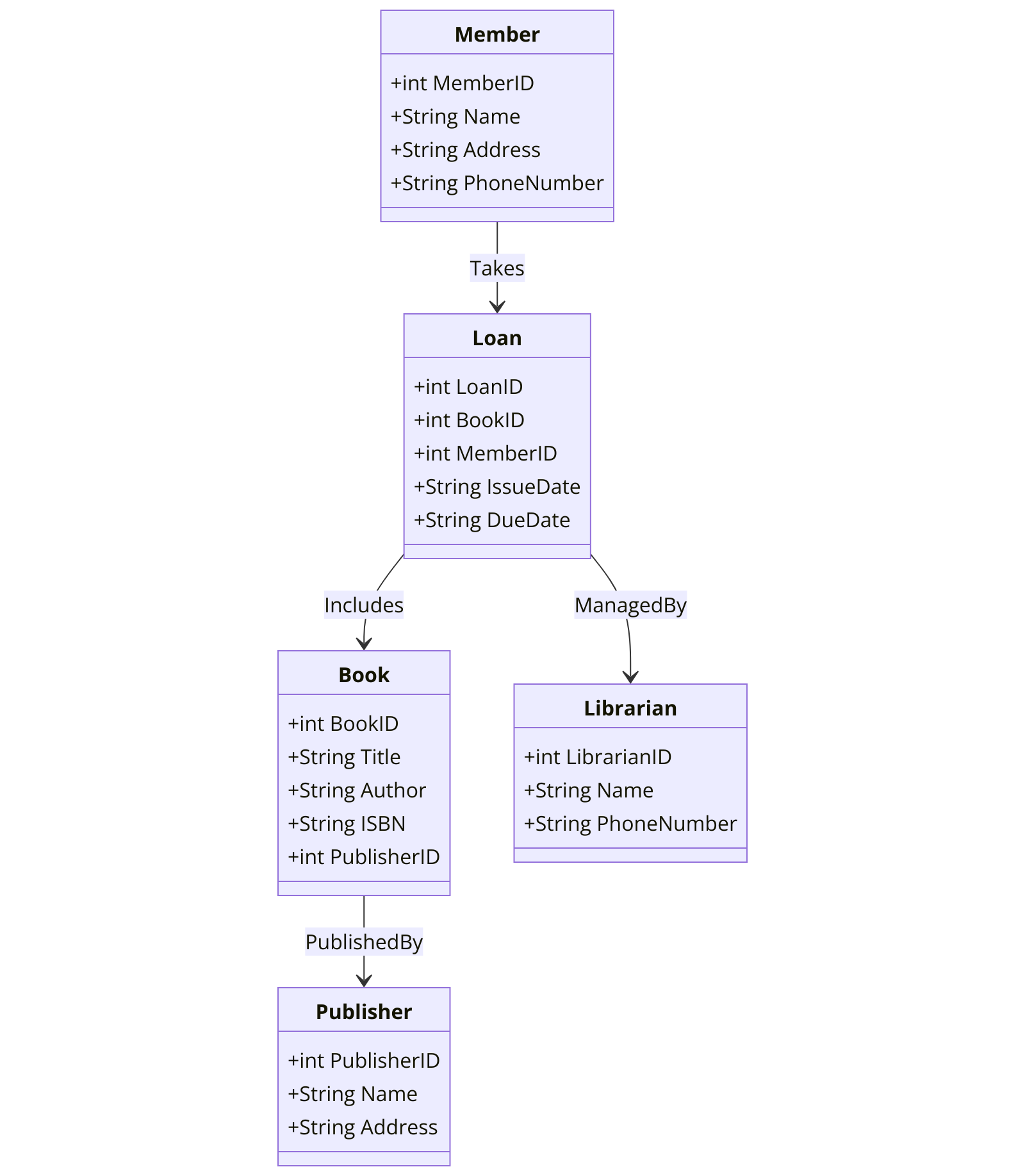

PARTIAL DATA MODEL FOR Library Management System SQL ASSIGNMENT
