A database table in Oracle is a structured collection of data organized into rows and columns. Each table represents a specific entity or object in the system, such as books in a library, and is used to store and retrieve data efficiently. Tables are fundamental elements in relational databases, and each table must have a unique name within a schema. The data in a table is structured into columns, which define the data types and constraints, and rows, which hold the actual data entries.

Key Points about Database Tables in Oracle:

1. Table Creation

   • Tables are created using the CREATE TABLE statement.
   • Each column is defined with a specific data type (e.g., VARCHAR2, NUMBER, DATE).

   CREATE TABLE books (
      book_id NUMBER PRIMARY KEY,
      title VARCHAR2(255),
      author_id NUMBER,
      published_date DATE
   );


2. Columns in a Table

   • Columns define the structure of the data stored in the table.
   • Each column has a name and a data type, which determines the kind of data it can store.
   • Example:
     • book_id stores numbers.
     • title stores character strings.

3. Rows in a Table

   • Rows contain the actual data in the table.
   • Each row is an individual record in the table, representing one entity (e.g., one book).
   • You can insert rows using the INSERT statement:

   INSERT INTO books (book_id, title, author_id, published_date)
   VALUES (1, 'The Great Gatsby', 10, TO_DATE('1925-04-10', 'YYYY-MM-DD'));


4. Table Naming Conventions

   • Table names should be descriptive and reflect the contents, such as authors, books, or library_members.
   • Use underscores to separate words for readability (e.g., library_membership).

5. Constraints in Tables

   • Constraints are rules applied to columns to ensure data integrity.
   • Common constraints include:
     • PRIMARY KEY: Uniquely identifies each row.
     • FOREIGN KEY: Links a column to a primary key in another table.
     • NOT NULL: Ensures the column cannot be empty.

   CREATE TABLE authors (
      author_id NUMBER PRIMARY KEY,
      name VARCHAR2(100)NOT  NULL
   );


6. Querying Data from Tables

   • To retrieve data from a table, use the SELECT statement:

   SELECT title, published_date
   FROM books
   WHERE author_id = 10;


This structure makes it easy for new students to understand how database tables work and how to interact with them.

To gain complete access, login with gmail or outlook, no need of signup. click here

Database Tables and Their Components

Database tables are designed to store data in a structured format, using rows and columns. Each table represents a specific type of entity, such as users, products, or orders, with the columns representing attributes of that entity. Understanding these components is crucial for effective database design and management.

Components of Database Tables

1. Table Name

   The unique identifier for a table within a database, descriptive of the data it holds.

2. Columns/Fields

   Columns represent the attributes of the entity. Each column has a specific data type and can be defined with various constraints:

   • Data Type: The kind of data a column can hold (e.g., VARCHAR, INT, DATE).
   • Constraints: Rules for the data stored in a column, including NOT NULL, UNIQUE, PRIMARY KEY, FOREIGN KEY, CHECK, and DEFAULT.
3. Rows/Records

   Individual instances of the entity, with each row having a unique identifier through the primary key.

4. Indexes

   Special lookup tables that speed up data retrieval, analogous to an index in a book.

5. Relationships

   Defines how tables relate to each other, including One-to-One, One-to-Many, and Many-to-Many relationships.

Sample SQL Code

Creating a Table

CREATE TABLE Students (
    StudentID INT PRIMARY KEY,
    FirstName VARCHAR(50) NOT NULL,
    LastName VARCHAR(50) NOT NULL,
    Email VARCHAR(100) UNIQUE,
    Age INT CHECK (Age > 0),
    EnrollmentDate DATE DEFAULT CURRENT_DATE
);

Inserting Data

INSERT INTO Students (StudentID, FirstName, LastName, Email, Age)
VALUES (1, 'John', 'Doe', 'john.doe@example.com', 20);

Querying Data

SELECT * FROM Students WHERE Age >= 18;

Updating Data

UPDATE Students SET Email = 'new.email@example.com' WHERE StudentID = 1;

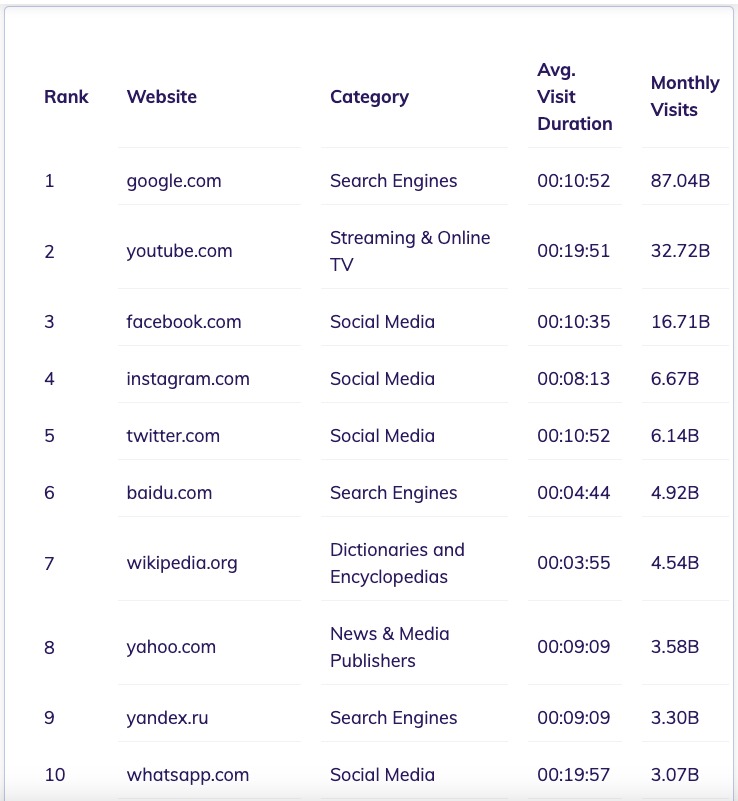

DATA TABLE - TOP 10 WEBSITES

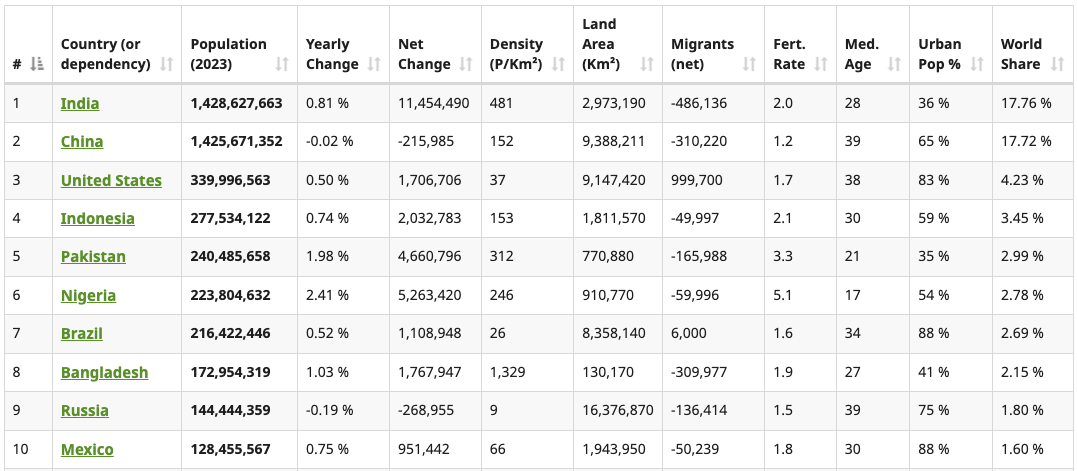

DATA TABLE - TOP 10 POPULATED COUNTRIES

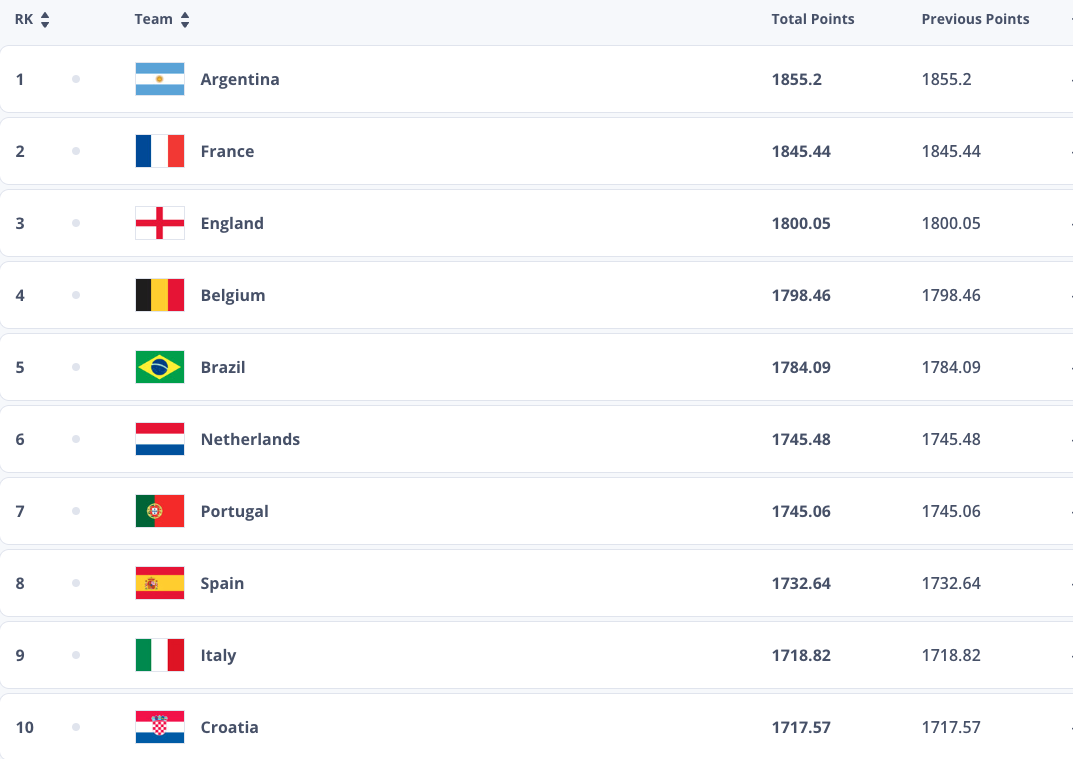

DATA TABLE - TOP 10 FOOTBALL TEAMS

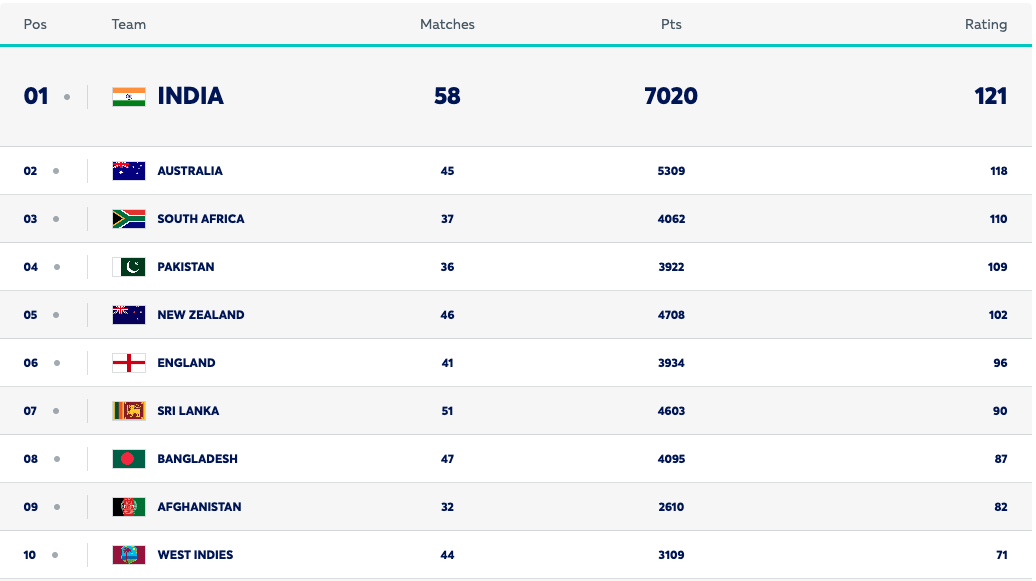

DATA TABLE - TOP 10 CRICKET TEAMS

POSTGRESQL - EMPLOYEE TABLE WITH DATA

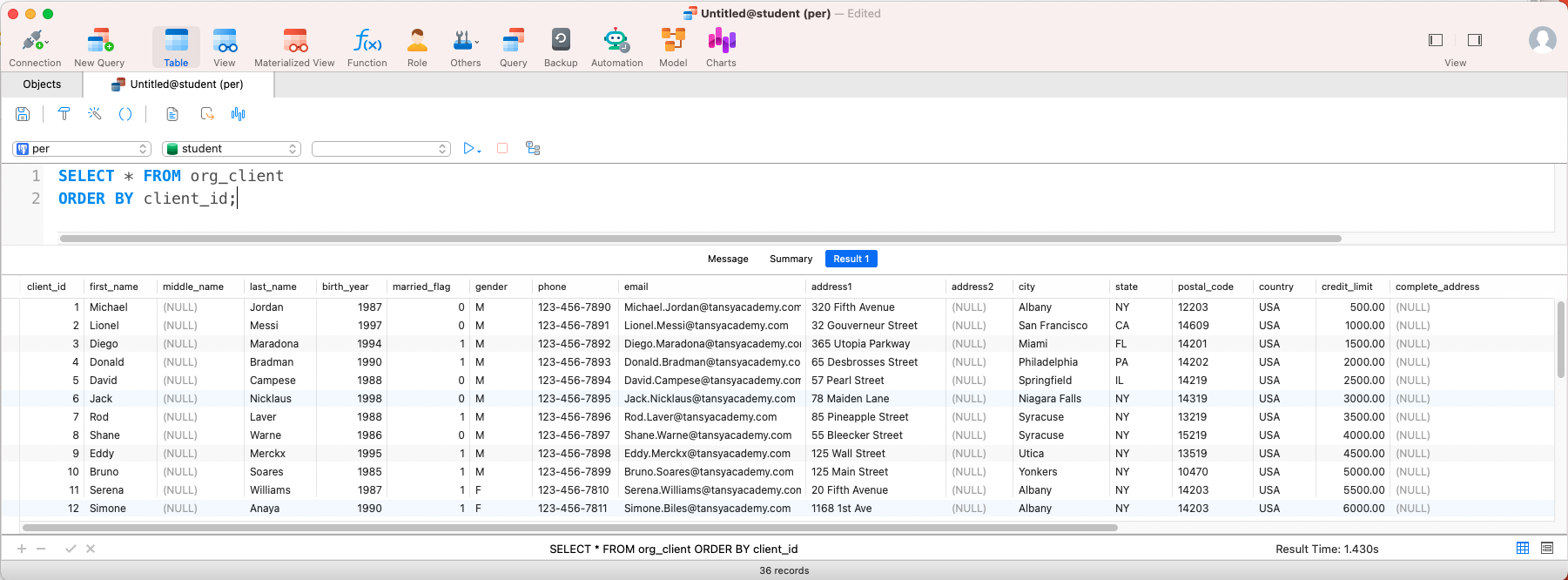

POSTGRESQL - CLIENTS TABLE WITH DATA

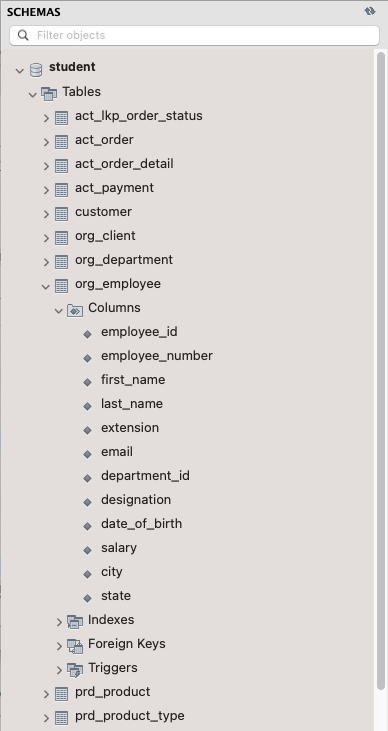

MYSQL TABLE LISTING

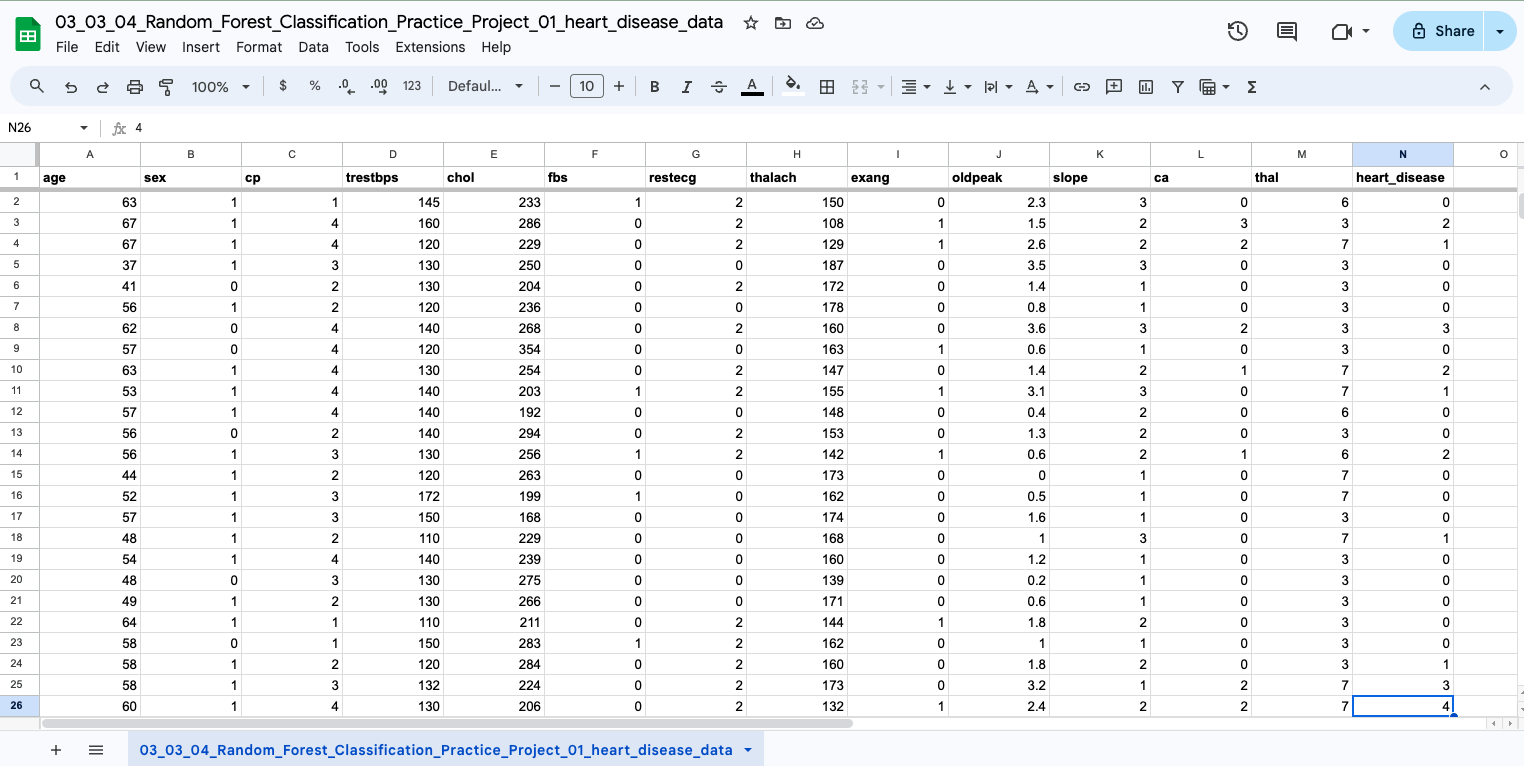

EXCEL DATA TABLE - PATIENT DATA

GRAPH DATA - NOT A SQL TABLE

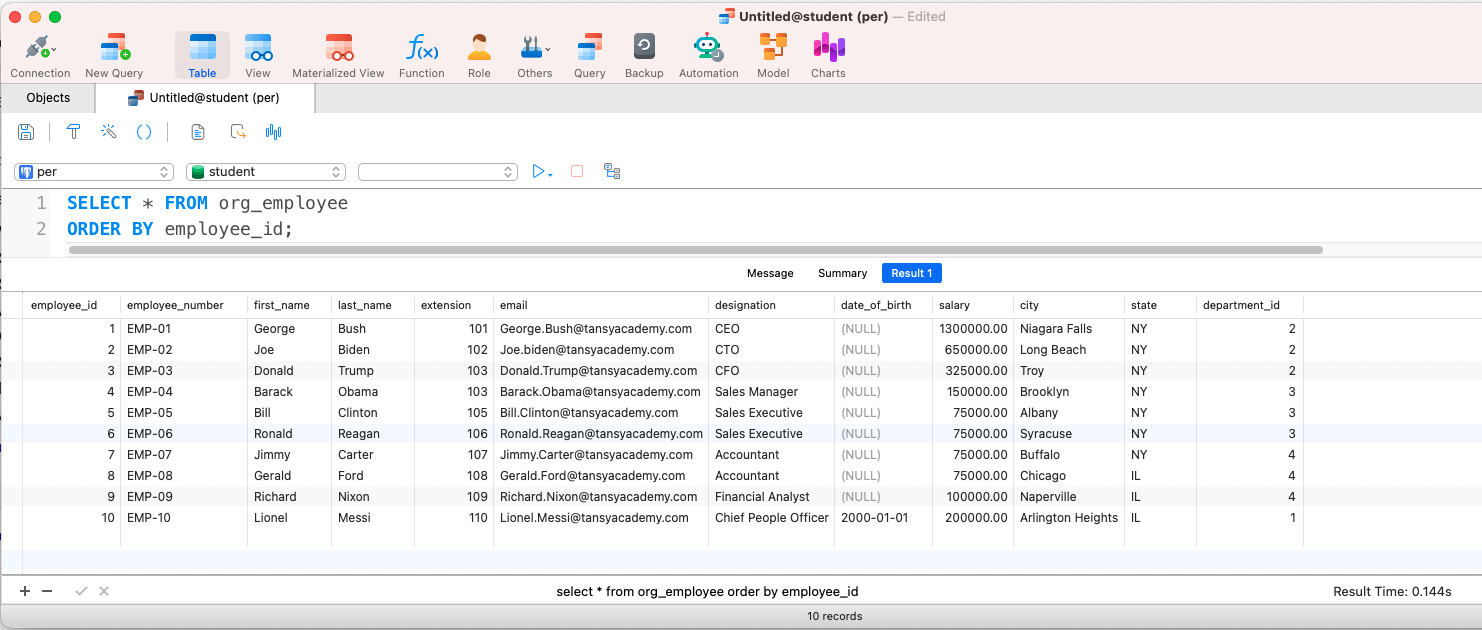

Employee Table with Data

Employee JSON Document, NOT A SQL TABLE

[
{
    "employee_id": 1,
    "employee_number": "EMP-01",
    "first_name": "George",
    "last_name": "Bush",
    "extension": 101,
    "email": "George.Bush@tansyacademy.com",
    "designation": "CEO",
    "date_of_birth": null,
    "salary": 130000,
    "city": "Niagara Falls",
    "state": "NY",
    "department_id": 2
},
{
    "employee_id": 2,
    "employee_number": "EMP-02",
    "first_name": "Joe",
    "last_name": "Biden",
    "extension": 102,
    "email": "Joe.biden@tansyacademy.com",
    "designation": "CTO",
    "date_of_birth": null,
    "salary": 65000,
    "city": "Long Beach",
    "state": "NY",
    "department_id": 2
}
]
