PostgreSQL

ERD Data Model Assignment

Introduction to ERD (Entity-Relationship Diagram)

An Entity-Relationship Diagram (ERD) is a visual representation of the relationships between tables (or entities) in a database. In this assignment, you will learn how to design an ERD for a Hospital Management System. The goal is to create a structured and well-organized data model that captures all essential relationships between patients, doctors, departments, and other entities.

ERDs are commonly used in database design to help understand the architecture before actual implementation. In this assignment, we will be using PostgreSQL as the database platform.

Tools for Creating ERDs

To design the ERD, you can use tools like pgAdmin 4, which is built specifically for PostgreSQL, or dbdiagram.io, an online platform for creating ERDs and generating SQL scripts. Both tools offer graphical interfaces to draw the database schema and export it into SQL code for PostgreSQL.

Objective of the Assignment

The objective is to design and implement an ERD and database schema for a Hospital Management System. This involves creating tables, relationships, constraints, and indexes to structure the data effectively.

By the end of this assignment, you will have a clear ERD diagram and SQL scripts representing the structure of a hospital database system.

Assignment Tasks

Construct all the tables from Chapter 5 DDL assignment within the ERD diagram using an ERD tool.

• Begin by creating each table, then define the columns within the table on the ERD tool canvas.
• Specify the DATA TYPES and NULLABILITY for all columns.
• Set PRIMARY KEYS for the tables.
• Define auto increment (IDENTITY) columns as needed.
• Establish FOREIGN KEY relationships where necessary.
• Define INDEXES where applicable.
• Implement CHECK constraints as needed.
• Define DEFAULTS where applicable.
• Refer to Chapter 5 DDL assignment for detailed instructions on tables and columns (/postgresql/data-definition-language-sql-ddl/sql-ddl-assignment-hospital-management-system-project).

Submission Instructions

1. ERD Design:
   • Option 1: Export your ERD as a PDF using pgAdmin 4.
   • Option 2: Export the ERD as a DDL SQL script.
2. SQL Scripts:
   • Submit SQL scripts for creating tables, constraints, indexes, and relationships.
3. Documentation:
   • Provide a brief explanation of the relationships between the tables and your design decisions.

Good luck with your assignment! Don't forget to contact us if you need any further assistance with your assignments, and most importantly, for a manual review and approval of your work.

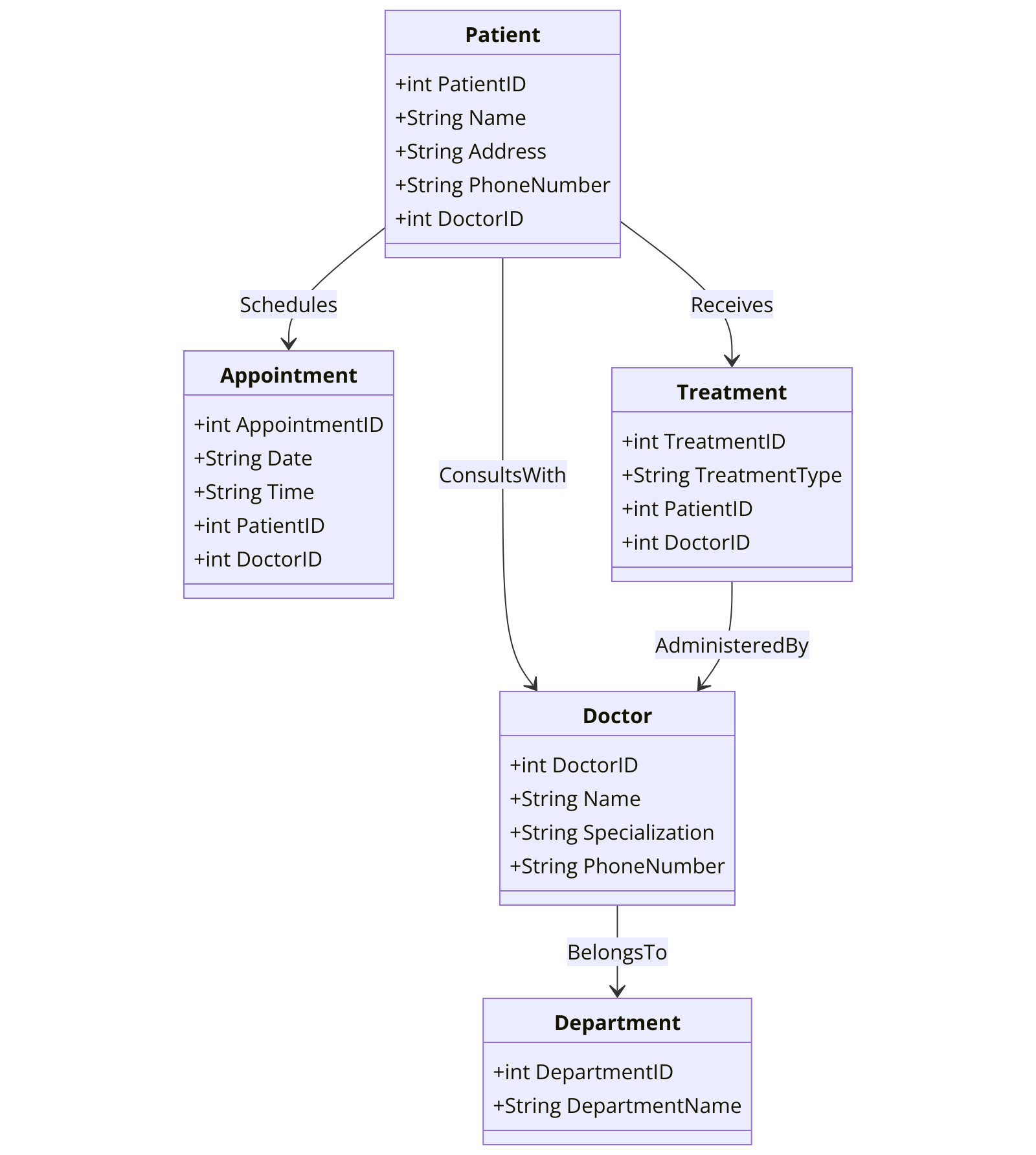

PARTIAL DATA MODEL FOR Hospital Management System SQL ASSIGNMENT
