ERD Data Model Assignment for Beginners in PostgreSQL

Introduction to ERD (Entity-Relationship Diagram)

An Entity-Relationship Diagram (ERD) is an essential tool for database design, used to represent the structure and relationships between entities (tables) in a database. By using ERDs, you can visualize how different entities such as customers, accounts, transactions, and others are related within your system. This assignment will guide you through designing an ERD for a Banking Application System.

Objective of the Assignment

Your task is to design and implement a comprehensive data model for a Banking Application System using data modeling tools.

Upon completion, you should have a clear pdf exported from the ERD diagram and a set of SQL scripts representing the database design.

Tools for Creating ERDs in PostgreSQL

To create your ERD, we recommend using pgAdmin 4 or dbdiagram.io, which provide visual interfaces for designing ERDs and exporting SQL scripts directly compatible with PostgreSQL. pgAdmin 4 integrates smoothly with PostgreSQL databases, allowing you to visually build your schema and generate SQL code from your diagram.

Assignment Tasks

Construct all the tables from Chapter 5 DDL assignment within the ERD diagram using an ERD tool.

• Begin by creating each table, then define the columns within the table on the ERD tool canvas.
• Specify the DATA TYPES and NULLABILITY for all columns.
• Set PRIMARY KEYS for the tables.
• Define auto increment (IDENTITY) columns as needed.
• Establish FOREIGN KEY relationships where necessary.
• Define INDEXES where applicable.
• Implement CHECK constraints as needed.
• Define DEFAULTS where applicable.
• Refer to Chapter 5 DDL assignment for detailed instructions on tables and columns (/postgresql/data-definition-language-sql-ddl/sql-ddl-assignment-banking-application-system-project).

Submission Instructions

1. ERD Design:
   • Option 1: Export your ERD as a PDF using pgAdmin 4.
   • Option 2: Export the ERD as a DDL SQL script.
2. SQL Scripts:
   • Submit SQL scripts for creating tables, constraints, indexes, and relationships.
3. Documentation:
   • Provide a brief explanation of the relationships between the tables and your design decisions.

GOOD LUCK WITH YOUR ASSIGNMENT!!!

Don't forget to contact us if you need any further assistance with your assignments, and most importantly, for a manual review and approval of your work.

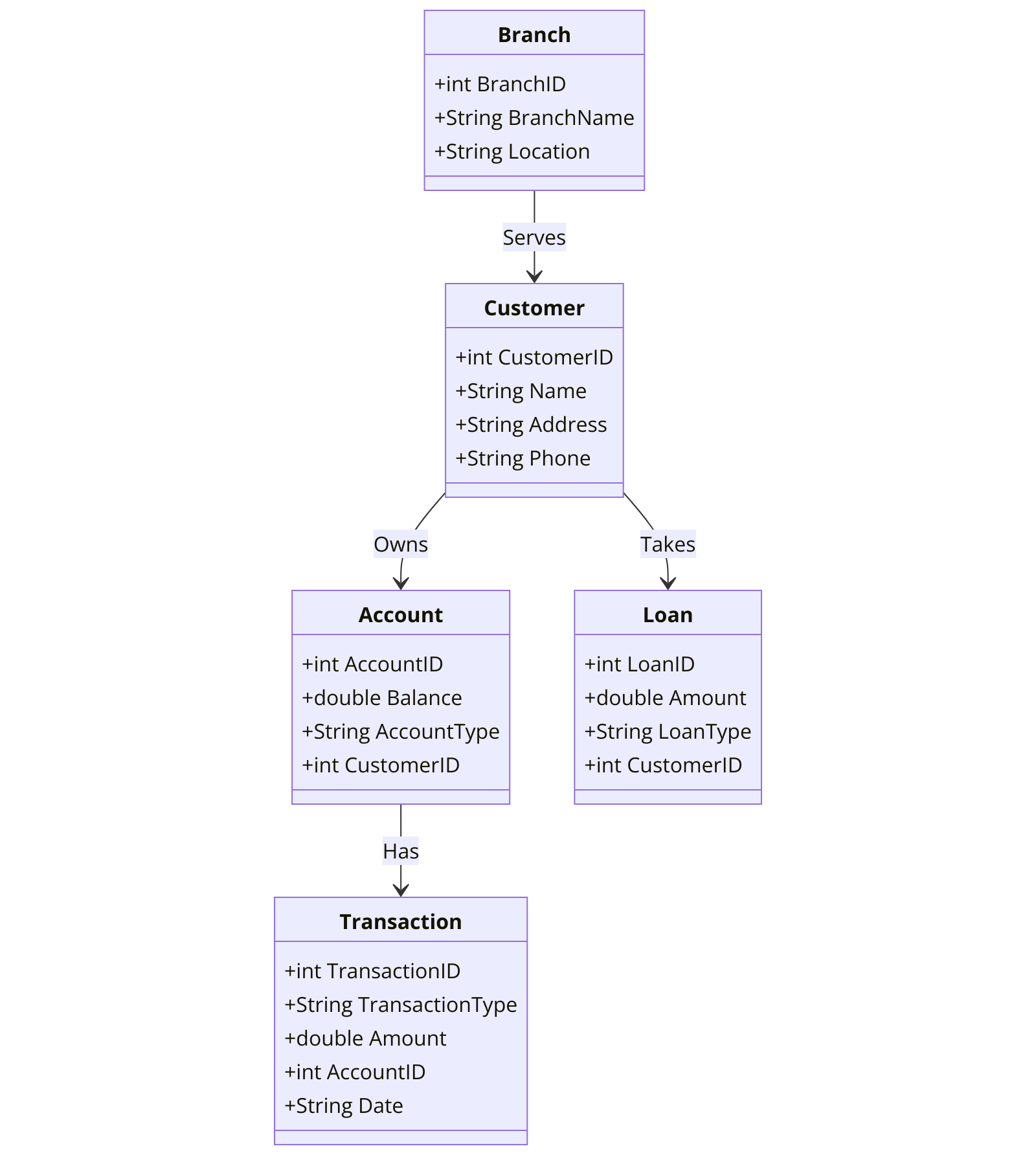

PARTIAL DATA MODEL FOR Banking Management System SQL ASSIGNMENT
