PostgreSQL

Chapter 5 - DDL (Data Definition Language)

DDL ASSIGNMENT2 - Hospital Management System

Objective:

You are required to address a set of Data Definition Language (DDL) tasks for a Hospital Management System. Each query focuses on distinct DDL tasks, including the creation of tables, application of constraints, and establishment of relationships between tables.

Requirements:

You will need to complete at least 20 different DDL tasks, covering table creation, primary keys, foreign keys, constraints, and indexes. Each task represents a key part of designing the structure of the Hospital Management System.

Question 1: Create the DEPARTMENT Table with a Foreign Key

Define a DEPARTMENT table:

  • department_id as a primary key with auto-increment functionality.
  • department_name as a string of maximum length 255 characters, not null.
  • created_date as a timestamp field, default to current timestamp, not null.

Question 2: Create the DOCTOR Table with Constraints

Create a DOCTOR table with the following specifications:

  • doctor_id as a primary key with auto-increment functionality.
  • first_name as a string with a maximum length of 255 characters, not null.
  • last_name as a string with a maximum length of 255 characters, not null.
  • specialization as a string with a maximum length of 255 characters, not null.
  • email as a unique string, not null.
  • per_visit_cost as a decimal (10, 2), not null.
  • active as a boolean, default to yes, not null.
  • login_id can use alpha numeric login id or email as login id, not null.
  • created_date as a timestamp field, default to current timestamp, not null.

Question 3: Define the DOCTOR_DEPARTMENT Table

Write the SQL statement to create a many-to-many relationship between doctors and departments. This will require the DOCTOR_DEPARTMENT table, which includes:

  • doctor_id as a foreign key referencing the DOCTOR table.
  • department_id as a foreign key referencing the DEPARTMENT table.

Question 4: Create the NURSE Table

Create a NURSE table:

  • nurse_id as a primary key with auto-increment functionality.
  • first_name as a string with a maximum length of 255 characters, not null.
  • last_name as a string with a maximum length of 255 characters, not null.
  • email as a unique string, not null.
  • hire_date as a date field, not null.
  • active as a boolean, not null.
  • login_id can use alpha numeric login id or email as login id, not null.
  • created_date as a timestamp field, default to current timestamp, not null.

Question 5: Define the ROOM Table with Relationships

Write the SQL statement to create a ROOM table that includes:

  • room_id as a primary key with auto-increment functionality.
  • room_number as a string of maximum length 50 characters, not null.
  • room_type as a string (e.g., "General", "ICU", "Private"), not null.
  • daily_rate as a decimal (10, 2), not null.
  • created_date as a timestamp field, default to current timestamp, not null.

Question 6: Create the PATIENT Table

Write a DDL SQL statement to create a PATIENT table with the following requirements:

  • patient_id as a primary key with auto-increment functionality.
  • first_name as a string of maximum length 255 characters, not null.
  • last_name as a string of maximum length 255 characters, not null.
  • date_of_birth as a date field, not null.
  • email as a unique string, not null.
  • phone_number as a string, not null.
  • created_date as a timestamp field, default to current timestamp, not null.

Question 7: Create the PATIENT_ADMISSION Table

Define a PATIENT_ADMISSION table with the following specifications:

  • admission_id as a primary key with auto-increment functionality.
  • admit_type as a string, not null.
  • treatment_description as a string of maximum length 255 characters, not null.
  • treatment_start_date as a date field, not null.
  • treatment_end_date as a date field, null.
  • patient_id as a foreign key referencing the PATIENT table, not null.
  • created_date as a timestamp field, default to current timestamp, not null.
  • Add a CHECK constraint to ensure the admit_type is In Patient Or Out Patient.

Question 8: Create the APPOINTMENT Table

Define an APPOINTMENT table with the following details:

  • appointment_id as a primary key with auto-increment functionality.
  • appointment_date as a date field, not null.
  • appointment_time as a time field, not null.
  • status as a string (e.g., "Scheduled", "Completed", "Cancelled"), not null.
  • doctor_id as a foreign key referencing the DOCTOR table, not null.
  • room_id as a foreign key referencing the ROOM table, not null.
  • incharge_nurse_id as a foreign key referencing the NURSE table, not null.
  • admission_id as a foreign key referencing the PATIENT_ADMISSION table, not null.
  • created_date as a timestamp field, default to current timestamp, not null.

Question 9: Create the ROOM_ADMIT Table

Define an ROOM_ADMIT table with the following details:

  • admit_id as a primary key with auto-increment functionality.
  • start_date as a date field, not null.
  • end_date as a date field, not null.
  • room_id as a foreign key referencing the ROOM table, not null.
  • incharge_nurse_id as a foreign key referencing the NURSE table, not null.
  • admission_id as a foreign key referencing the PATIENT_ADMISSION table, not null.
  • created_date as a timestamp field, default to current timestamp, not null.

Question 10: Create the MEDICATION Table

Write a DDL SQL statement to create a MEDICATION table with the following details:

  • medication_id as the primary key with auto-increment functionality.
  • medication_name as a string of maximum length 255 characters, not null.
  • medication_type as a string of maximum length 100 characters, not null.
  • dosage as a string, not null.
  • created_date as a timestamp field, default to current timestamp, not null.

Question 11: Create the PRESCRIPTION Table

Write a DDL SQL statement to create a PRESCRIPTION table:

  • prescription_id as the primary key with auto-increment functionality.
  • prescription_date as a date field, not null.
  • medication_id as a foreign key referencing the MEDICATION table, not null.
  • doctor_id as a foreign key, not null.
  • start_date as a date field, not null.
  • end_date as a date field, not null.
  • morning_flag as a boolean, not null.
  • noon_flag as a boolean, not null.
  • evening_flag as a boolean, not null.
  • admission_id as a foreign key referencing the PATIENT_ADMISSION table, not null.
  • created_date as a timestamp field, default to current timestamp, not null.

Question 12: Create the BILLING Table with Constraints

Write a DDL SQL statement to create a BILLING table:

  • billing_id as a primary key with auto-increment functionality.
  • bill_date as date, not null.
  • bill_type as string, not null.
  • description as string, not null.
  • total_amount as a decimal (10, 2), not null.
  • balance_amount as a decimal (10, 2), not null.
  • admission_id as a foreign key referencing the PATIENT_ADMISSION table, not null.
  • created_date as a timestamp field, default to current timestamp, not null.
  • Add a CHECK constraint to ensure the bill_type is Doctor Appointment or Medicine or Room Charge or Diagnostic or Food or Miscellaneous.
  • Add a CHECK constraint to ensure that total_amount is greater than 0.

Question 13: Create the PAYMENT Table with Constraints

Write a DDL SQL statement to create a PAYMENT table:

  • payment_id as a primary key with auto-increment functionality.
  • bill_id as a foreign key referencing the BILLING table, not null.
  • patient_id as a foreign key referencing the PATIENT table, not null.
  • amount_paid as a decimal (10, 2), not null.
  • payment_date as a datetime, not null.
  • Add a CHECK constraint to ensure that amount_paid is greater than 0.

Question 14: Create the USER_LOGIN Table

Write a DDL SQL statement to create an USER_LOGIN table:

  • user_id as a primary key with auto-increment functionality.
  • login_id can use alpha numeric or email as login id, not null.
  • password must encrypt the password before storing it in the database table when required.
  • active_flag use numeric, 0 or 1, you can lock the user login when required, not null.
  • last_login_datetime as timestamp, last successful login date for a given user.
  • active as boolean, default to yes, not null.
  • created_date as a timestamp field, default to current timestamp, not null.

Question 15: Create the AUDIT_LOG Table

Define an AUDIT_LOG table to track changes in the hospital management system:

  • log_id as a primary key with auto-increment functionality.
  • log_date as a date field, not null.
  • action as a string to describe the action performed.
  • user_id as a foreign key referencing the DOCTOR or NURSE table.

Question 16: Add a Column to the DOCTOR Table

Write a SQL statement to add a phone_number column of type VARCHAR(15) to the DOCTOR table.

Question 17: Alter a Column in the PATIENT Table

Write a SQL statement to alter the email column in the PATIENT table, increasing its length to 300 characters.

Question 18: Drop a Column from the USER_LOGIN Table

Write a SQL statement to drop the active column from the USER_LOGIN table.

Question 19: Rename the USER_LOGIN Table

Write a SQL statement to rename the USER_LOGIN table to USER.

Question 20: Drop the USER Table

Write a SQL statement to drop the USER table.

Question 21: Add a Primary Key

Set up a composite primary key using doctor_id and department_id on DOCTOR_DEPARTMENT table.

Question 22: Add a Foreign Key to the PRESCRIPTION Table

Add a foreign key in the PRESCRIPTION table to reference the DOCTOR table.

Question 23: Add a CHECK Constraint on the TREATMENT Table

Write a SQL statement to add a CHECK constraint to the TREATMENT table ensuring that the treatment_date is not in the future.

Question 24: Add a UNIQUE Constraint on the DEPARTMENT Table

Write a SQL statement to add a UNIQUE constraint to the DEPARTMENT table ensuring that the department_name is not repeated.

Question 25: Add a DEFAULT Constraint on the AUDIT_LOG Table

Write a SQL statement to add a DEFAULT constraint to the AUDIT_LOG table to set the default value of log_date to the current system date.

Question 26: Add Indexes to the PATIENT and DOCTOR Tables

Write SQL statements to:

  • Add an index on the last_name column in the PATIENT table.
  • Add an index on the specialization column in the DOCTOR table.

Question 27: Drop an Index from the DOCTOR Table

Write a SQL statement to drop the index on the specialization column in the DOCTOR table.

Question 28: Enforce UNIQUE constraints on all applicable tables.

Apply UNIQUE constraints across the entire database wherever duplicate data is not permitted.

GOOD LUCK WITH YOUR ASSIGNMENT!!!

Don't forget to contact us if you need any further assistance with your assignments, and most importantly, for a manual review and approval of your work.

Tansy SQL Course - DDL ASSIGNMENT2 - Hospital Management System - Video Thumbnail

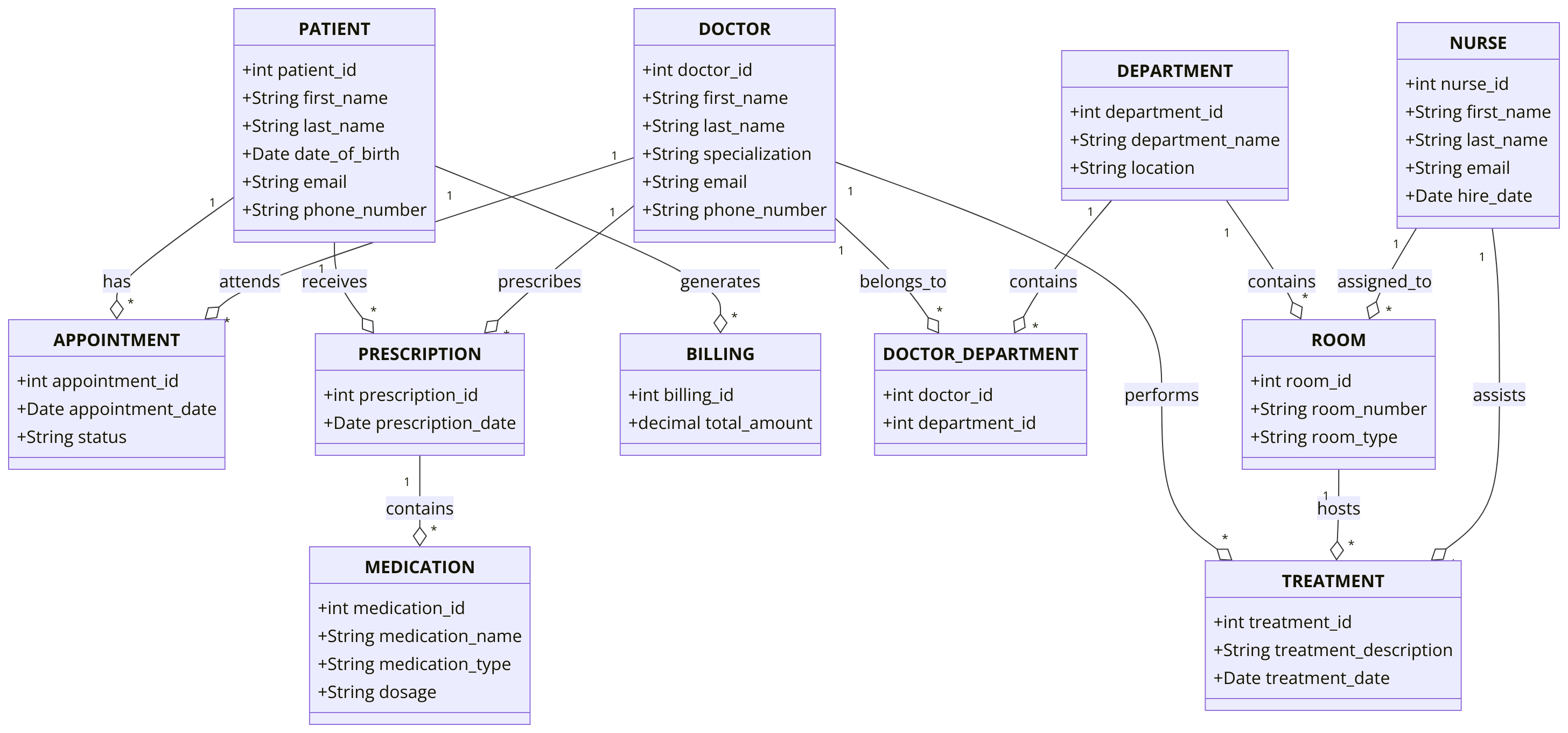

Sample ERD Data Model for Hospital Management System
